| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Termination | |
| Termination Style | |
| Weight |

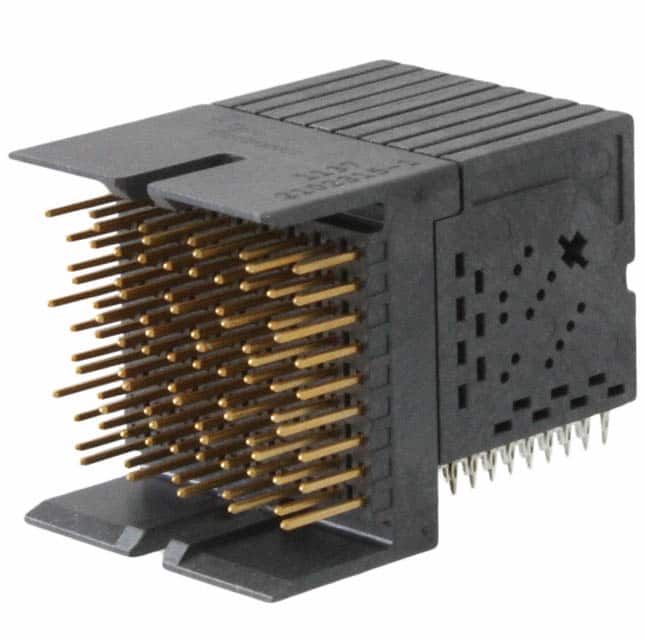

The TE Connectivity 2102315-1 is a specialized backplane connector designed for high-density interconnect applications. It features 90 positions arranged in 9 rows and 10 columns, with male pin contacts. The connector supports board edge, through hole, and right angle mounting configurations, providing flexibility for various PCB layouts.
This connector uses press-fit termination for reliable, solderless connections. The contacts are gold plated with a thickness of 50.0µin (1.27µm) over nickel, ensuring excellent conductivity and corrosion resistance. The housing is made of LCP (Liquid Crystal Polymer) in black, and the connector is shielded for EMI protection.
Typical applications include daughtercard connections in backplane systems, telecommunications equipment, and networking hardware. The connector weighs approximately 11.16 grams and is designed for robust mechanical and electrical performance.
| Qty | Low | High |
|---|---|---|
| 100+ | $33.96 | $33.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 90 positions.
It supports board edge, through hole, and right angle mounting.
It has 9 rows and 10 columns.
Press-fit termination.
Gold plating with a thickness of 50.0µin (1.27µm) over nickel.
Yes, it is shielded.
Contacts and shield are copper alloy; housing is LCP (Liquid Crystal Polymer).
