| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,923 pcs
|
6923 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Housing Color | |
| Housing Material | |
| Material Flammability Rating | |
| Mating Retention Type | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Reverse Gender | |
| SVHC Present | |
| Sealed | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination Style | |
| Thread Size | |
| Type | |
| UL Flammability Rating |

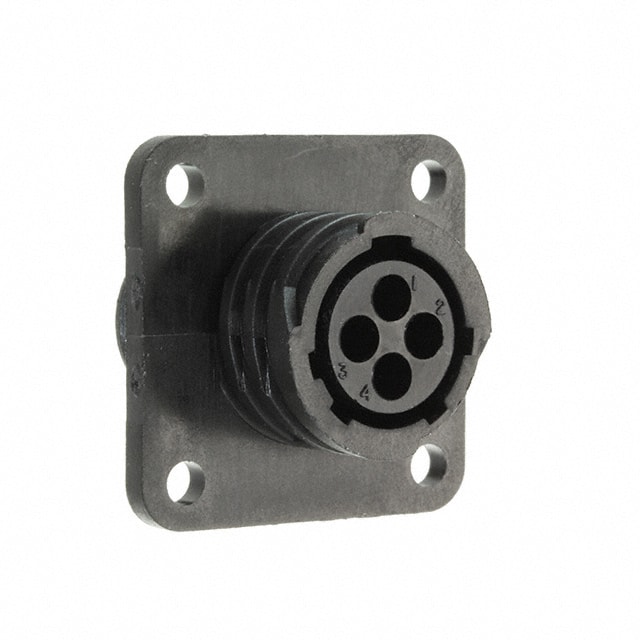

The TE Connectivity 206430-1 is a CPC Series 1 circular connector receptacle housing designed for commercial signal applications. This housing accepts size 16 socket contacts (not included) and features a 4-position arrangement with all signal positions. The shell size 11 housing is constructed from a thermoplastic glass-filled material that is black in color and meets UL 94V-0 flammability requirements.
The housing is panel mount with a flange and mounting holes for secure installation. Mating retention is achieved through a threaded coupling mechanism with a 5/8-24 UNEF-2A thread. Orientation is keyed A to prevent mismating, and the reverse gender design allows for non-standard mating configurations. The connector is unshielded and not sealed, making it suitable for indoor or protected environments.
Termination is crimp style, requiring separate contacts and tooling. The housing is RoHS and ELV compliant with no lead-free solder process relevance. It is designed for use with mating plugs in CPC systems, offering reliable connections in industrial and commercial equipment.
It has 4 positions, all of which are signal positions.
It is panel mount with a flange and mounting holes.
Threaded coupling with a 5/8-24 UNEF-2A thread.
Thermoplastic, glass filled (GF).
UL 94V-0.
Keyed A.
The housing is a receptacle with socket contacts, and reverse gender indicates a non-standard mating configuration for keying.
