| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Arc Voltage | |
| Capacitance | |
| DC Holdover Time | |
| DC Holdover Voltage | |
| DC Sparkover Voltage | |
| Fail Short | |
| Glow-Arc Transition Current | |
| Impulse Discharge Current (10/1000µs) | |
| Impulse Discharge Current (8 | |
| Impulse Discharge Current (8/20 µs) | |
| Impulse Sparkover Voltage (1000V/µs) | |
| Insulation Resistance | |
| Max Single Discharge Current | |
| Mounting Type | |
| Number of Poles | |
| Prop 65 | |
| Tolerance | |
| Voltage |

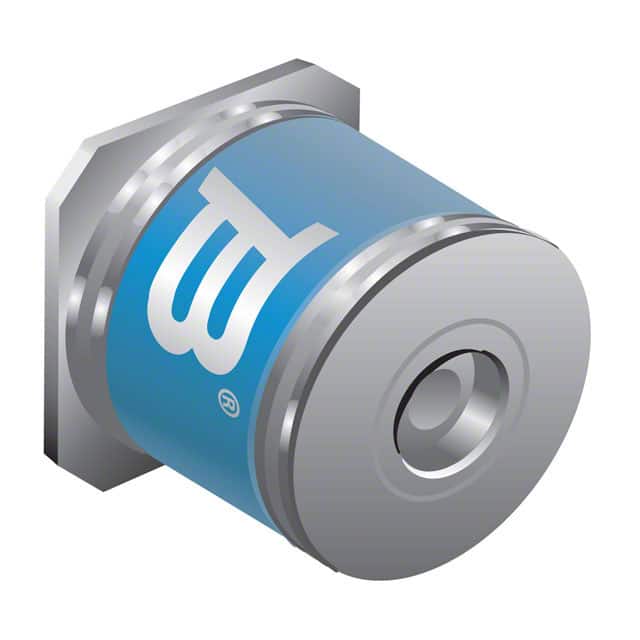

The Bourns 2039-110-SM-RPLF is a precision, fast-responding gas discharge tube (GDT) designed for overvoltage protection in high-speed communication circuits. This 2-electrode device features a DC sparkover voltage of 1100 V (±20% tolerance) and an impulse sparkover voltage of 1500 V at 1000 V/µs, tested per ITU-T K.12, IEEE C62.31, and IEC 61643-311 standards.
With a maximum single discharge current rating of 5 kA and an impulse discharge current of 2.5 kA (8/20 µs waveform, >10 operations), this GDT provides robust protection against transient surges. It maintains a low capacitance of less than 1 pF and high insulation resistance greater than 10^9 ohms, ensuring minimal signal degradation in broadband applications.
The device is housed in a compact 2-SMD cylinder square end package suitable for surface mount assembly. It supports leadless, economical assembly and is compatible with pick-and-place systems. The part is RoHS3 compliant and carries a California Prop 65 cancer and reproductive harm warning as per the datasheet.
1100 V, ±20% tolerance, measured at 100 V/s.
2.5 kA for 8/20 µs waveform (>10 operations) and 100 A for 10/1000 µs waveform.
2-SMD Cylinder Square End package, surface mount.
Yes, listed as RoHS3 Compliant (unverified).
Not specified in available data.
