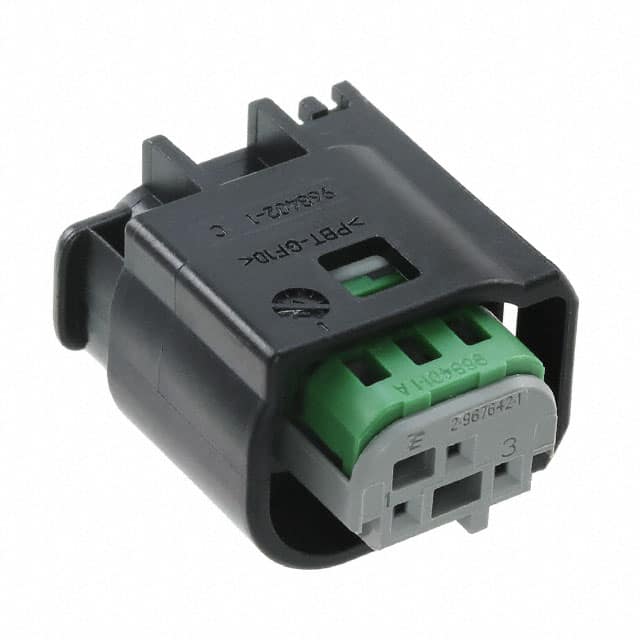

2-967642-1 TE Connectivity MQS 3-position receptacle housing, gray, sealed, free hanging (in-line) mounting with crimp termination.
Mfr Part #:

2-967642-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity MQS 3-position receptacle housing, gray, sealed, free hanging (in-line) mounting with crimp termination.
✓ Total Stock: 69 pcs

2-967642-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
69 pcs
On Request
69 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2-967642-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Features
Height
Housing Material
Length
Mounting Type
Number of Positions
Operating Temperature
Termination Style
Width
View Similar Products (0)

2-967642-1 Description

Short technical summary and product information.

The TE Connectivity 2-967642-1 is a 3-position MQS (Micro Quadlok System) receptacle housing designed for free hanging (in-line) mounting. It accepts female socket contacts with crimp termination and supports wire sizes from 0.2 to 0.75 mm².



The housing is molded from PBT-GF 15 material and features a silicone rubber seal for environmental protection. It is available in multiple coding variants (A, B, C, E, Z) for keyed mating. The operating temperature range is -40°C to 120°C.



This component is suitable for automotive and industrial applications requiring a sealed, reliable connection. The housing includes a retainer and protective cover, with overall dimensions of 54.3 mm length, 14.3 mm width, and 24.2 mm height.

2-967642-1 Quick Information

Product Type: Rectangular Connector Housing
Series: MQS
Canonical Name: TE Connectivity MQS Socket Housing, 3 Position, Gray, Sealed
Subcategory: Rectangular Connector Housings

2-967642-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

2-967642-1 Features

  • 3-position MQS receptacle housing.
  • Sealed design with silicone rubber seal.
  • Free hanging in-line mounting style.
  • Crimp termination for female socket contacts.
  • Operating temperature range -40°C to 120°C.

2-967642-1 Applications

  • Automotive wire harness connections.
  • Industrial control system interconnects.
  • Sealed sensor and actuator connections.
  • In-line cable-to-cable connector assemblies.

2-967642-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 2-967642-1?

-40°C to 120°C.

What wire sizes does this housing support?

0.2 to 0.75 mm².

What mounting type does the 2-967642-1 use?

Free hanging (in-line).

What is the housing material of this connector?

PBT-GF 15.

Is the 2-967642-1 sealed?

Yes, it features a silicone rubber seal.
