| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Type | |
| Function | |
| Insulation Material | |
| Number of Levels | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present |

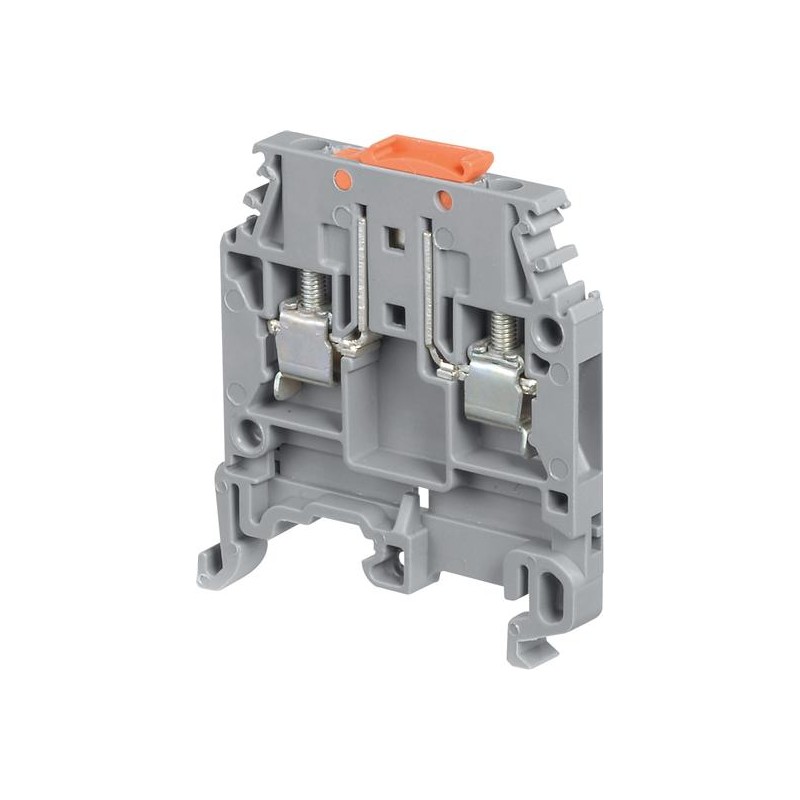

The ABB Power Electronics 1SNA115700R0500 is a disconnect terminal block designed for efficient circuit management. It features a screw clamp connection type and a disconnect blade operated by hand or screwdriver, facilitating easy disconnect operations. The integrated test socket simplifies testing procedures.
This terminal block has a rated current of 10A and a rated voltage of 320V, with a rated impulse withstand voltage of 4000V. It supports connecting solid or flexible conductors ranging from 0.5 to 2.5 mm² for flexible and 0.5 to 4 mm² for rigid wires. The polyamide insulation material ensures durability.
Designed for mounting on standard DIN rails (G32, TH35-7.5, TH35-15), this terminal block offers a product net width of 5 mm, height of 44.5 mm, and depth of 44.5 mm. It operates within an ambient air temperature range of -55 to +110 °C.
The MA2.5/5.SNBT series terminal block shares the same profile as the MA2.5/5 feed-through terminal block, allowing for aligned marking and identical end section use. It is supplied in grey and orange.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current for the main circuit is 10 A.
The rated voltage for the main circuit is 320 V.
It can connect flexible conductors from 0.5 to 2.5 mm² and rigid conductors from 0.5 to 4 mm².
It is designed for mounting on G32 (32 x 15 mm), TH35-7.5 (35 x 7.5 mm), or TH35-15 (35 x 15 mm) DIN mounting rails.
The ambient air temperature range for operation and storage is -55 to +110 °C.
Yes, it features a disconnect blade operated by hand or screwdriver for ease of disconnect operations.
