1SNA115268R0700

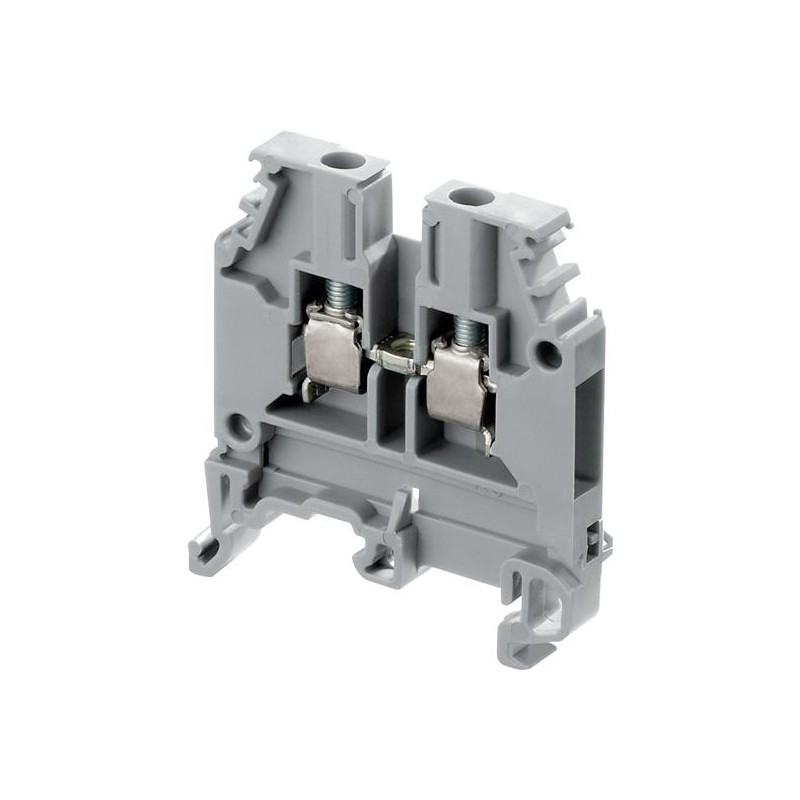

The Entrelec 1SNA115268R0700 is a feed-through terminal block with a screw clamp connection type. It features a grey polyamide insulation material and is designed for mounting on various DIN rails including G32, TH35-7.5, and TH35-15.

This terminal block has a rated cross-section of 4 mm² and a spacing of 6 mm. It supports a main circuit rated current of 32A and a rated voltage of 800V, with a rated impulse withstand voltage of 8000V. The connecting capacity for the main circuit ranges from 0.22 mm² to 4 mm² for flexible and rigid wires, and up to 2.5 mm² with insulated ferrules. UL/CSA specifications include a rigid connection capacity of 1x 22-10 AWG or 2x 14 AWG, and stranded capacity of 10 AWG, with a maximum operating voltage of 600V.

Environmental specifications include an operating and storage temperature range of -55°C to +110°C and a flammability rating of V0 according to UL94. The degree of protection for the main terminals is IP20.

Key mechanical dimensions include a product net width of 6 mm, height of 63.5 mm, and depth of 40.5 mm, with a weight of 8.2g. Wire stripping length is 9.5 mm, and recommended screw driver size is 4 mm. Tightening torque specifications are 0.5 N·m according to IEC 60947-1 and 0.8 N·m as per manufacturer recommendation.
