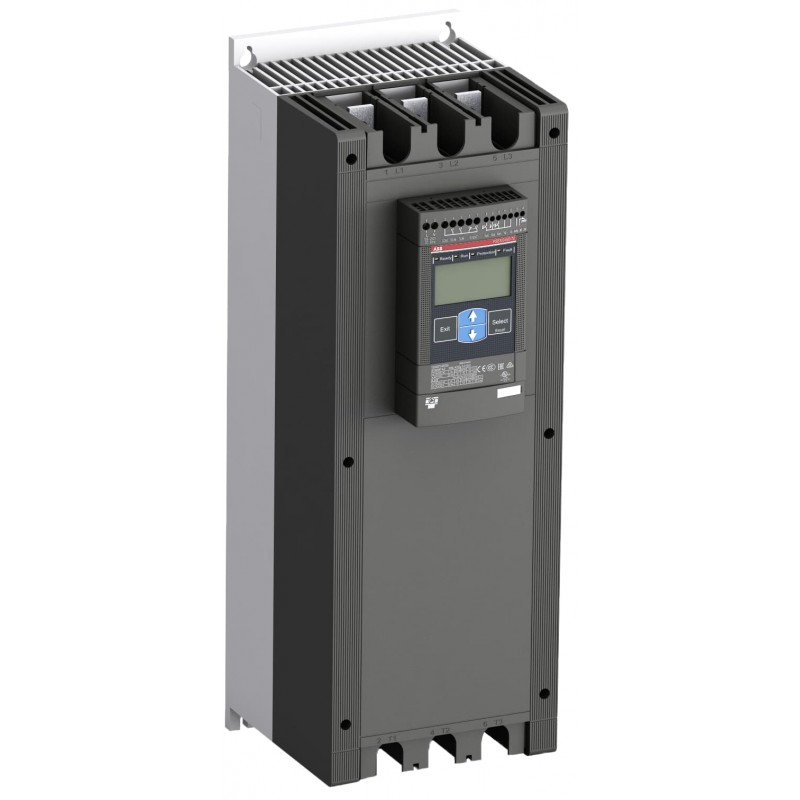

The ABB Power Electronics PSE300-600-70, identified by part number 1SFA897114R7000, is a robust softstarter engineered for demanding industrial applications. It supports a maximum main voltage of 600V AC and handles a rated operational current of 300A in an in-line connection.
This softstarter offers a rated control supply voltage range of 100-250V AC, with an option for 24V DC control circuit voltage. Key electrical features include adjustable rated motor current from 30% to 100%, a starting capacity of 4xIe for 10 seconds, and a current limit function adjustable from 1.5 to 7xIe. It also provides integrated electronic overload protection and various signal relays for run, by-pass, fault, and overload status.
Designed for operational temperatures between -25°C and +60°C, the PSE300-600-70 has a degree of protection of IP00 for its main terminals. Its dimensions are 190mm width, 550mm height, and 236.5mm depth, with a net weight of 13.9kg. The main circuit terminals accommodate bars with a width and thickness of 20x5 MMT, and wire gauges from 1x2.5 mm² to 2x1.5 mm².
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operational voltage is 208 to 600 V AC.
The rated operational current in an in-line connection is 300 A.
The control supply voltage is 100 to 250 V AC, and the control circuit voltage can be 24 V DC.
Yes, it features built-in electronic overload protection.
The starting capacity is 4 times the rated current (Ie) for 10 seconds.
The operating temperature range is -25°C to +60°C.
The degree of protection for the main terminals is IP00.
