| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Number of Poles | |
| Power | |
| Rated Current | |
| Rated Voltage | |
| Weight |

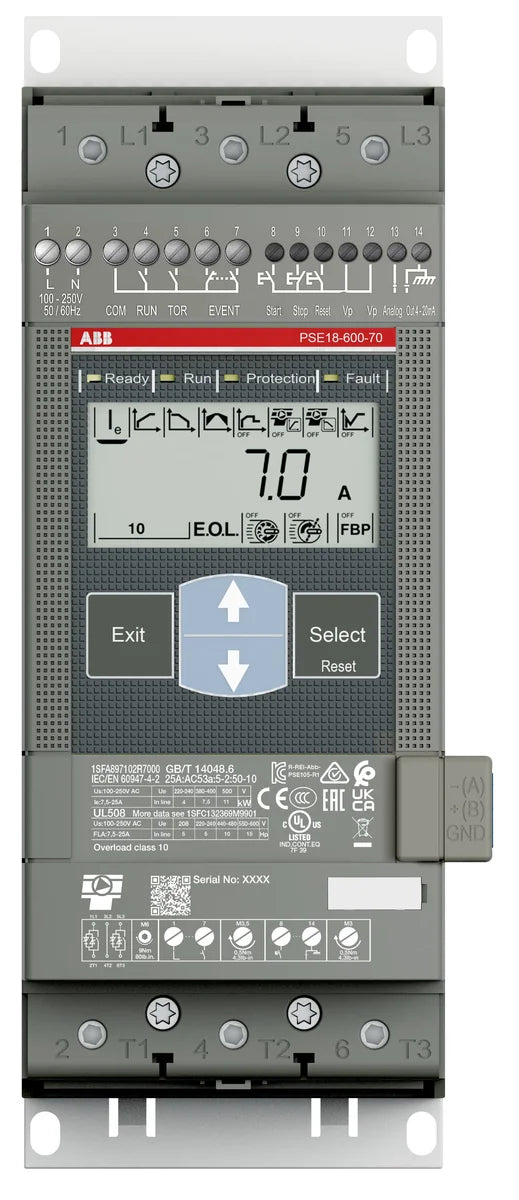

The ABB 1SFA897101R7000 PSE18-600-70 is a 3-phase, 18 Amp electronic soft starter designed for controlled motor acceleration and deceleration. It supports a wide supply voltage range of 208–600 V AC and is rated for 7.5 kW motor loads.
This soft starter utilizes a control voltage of 110–250 V AC. It is engineered to reduce mechanical stress and inrush current in industrial motor applications, thereby extending equipment lifetime and improving energy efficiency. The PSE18-600-70 is suitable for various industrial applications including pumps, fans, compressors, conveyor systems, HVAC equipment, and process machinery.
Key technical specifications include a rated current of 18 A, a motor power rating of 7.5 kW, and a 3-pole configuration. It also features Modbus RTU communication. The unit weighs 3.2 kg.
Compliance includes CE, IEC 60947-1, IEC 60529, EN 60529, CSA, CCC, RoHS, RoHS II, and WEEE standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 18 A.
The motor power rating is 7.5 kW.
The rated voltage is 208–600 V AC.
The control voltage is 110–250 V.
It has 3 poles.
Yes, it supports Modbus RTU communication.
It is CE, IEC 60947-1, IEC 60529, EN 60529, CSA, CCC, RoHS, RoHS II, and WEEE compliant.
