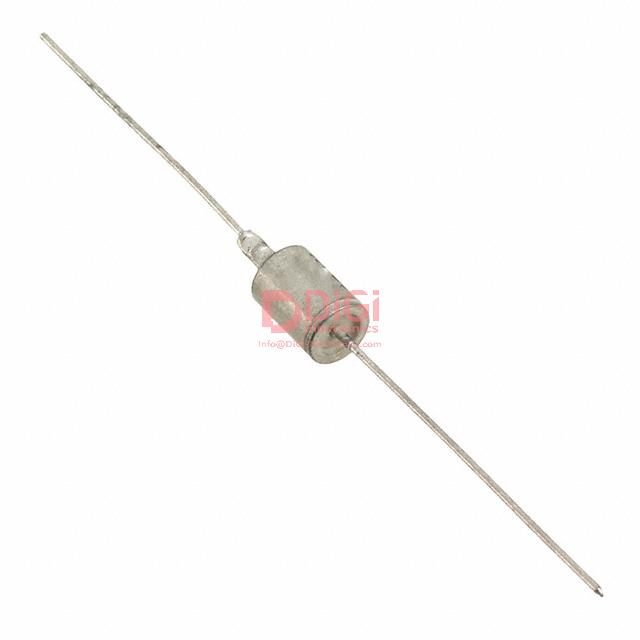

1N6364 The General Instrument 1N6364 is a TVS Diode designed for general purpose applications. It features a 160V reverse standoff voltage and a 5.4A peak pulse current.
Mfr Part #:

1N6364

Available from 1 distributors
Mfr Name: General Instrument
General Instrument
The General Instrument 1N6364 is a TVS Diode designed for general purpose applications. It features a 160V reverse standoff voltage and a 5.4A peak pulse current.
✓ Total Stock: 892 pcs
$ Price Range: $1.21

1N6364 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
892 pcs
On Request
892 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N6364 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Channels
Mounting Type
Operating Temperature
Supplier Device Package
Type
View Similar Products (0)

1N6364 Description

Short technical summary and product information.

The 1N6364 from General Instrument is a Transient Voltage Suppressor (TVS) Diode designed for general purpose applications. This device offers a reverse standoff voltage of 160V and a breakdown voltage of 181V.



With a peak pulse current rating of 5.4A (10/1000µs) and a peak pulse power of 1500W, the 1N6364 provides robust transient voltage suppression. It operates within a temperature range of -55°C to 175°C.



The TVS diode is housed in a DO-13 package and is designed for through-hole mounting, making it suitable for various circuit designs. Its Zener type and bidirectional channel configuration are key electrical characteristics for its protective function.

1N6364 Quick Information

Product Type: TVS Diode
Canonical Name: 1N6364 Transient Voltage Suppressor Diode
Subcategory: TVS Diodes

1N6364 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N6364 Estimated Pricing

Qty Low High
1+ $1.21 $1.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N6364 Features

  • 160V reverse standoff voltage.
  • 181V minimum breakdown voltage.
  • 5.4A peak pulse current capability.
  • 1500W peak pulse power rating.
  • DO-13 through-hole package.

1N6364 Applications

  • Protects circuits from transient voltage spikes.
  • Suitable for general-purpose TVS diode applications.
  • Used in electronic devices requiring voltage clamping.
  • Ideal for surge suppression in power lines.
  • Applicable in RF and high-frequency circuits.

1N6364 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse standoff voltage of the 1N6364?

The reverse standoff voltage is 160V.

What is the breakdown voltage of the 1N6364?

The minimum breakdown voltage is 181V.

What is the peak pulse current for the 1N6364?

The peak pulse current is 5.4A for a 10/1000µs waveform.

What is the peak pulse power of the 1N6364?

The peak pulse power is 1500W.

What is the operating temperature range for the 1N6364?

The operating temperature range is -55°C to 175°C.

What type of diode is the 1N6364?

The 1N6364 is a Zener type TVS diode.

How is the 1N6364 packaged?

The 1N6364 is packaged in a DO-13 case for through-hole mounting.
