Mfr Part #:

1N5059

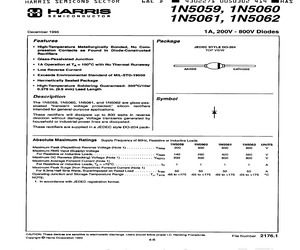

The General Instrument 1N5059 is a silicon signal diode with a peak repetitive reverse voltage of 200V and an average forward current of 1A. It is designed for general-purpose applications.

✓ Total Stock: 2,000 pcs

$ Price Range: $0.99

1N5059 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ACK ELEKTRONIK ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1N5059 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	General Instrument
Diode Type	Signal Diode
Forward Voltage	1.1 V @ 1 A
Mounting Type	Through Hole
Reverse Current	5 µA @ 200 V

View Similar Products (0)

1N5059 Description

Short technical summary and product information.

The 1N5059 from General Instrument is a silicon signal diode designed for various electronic applications. It features a maximum average forward current of 1A and a peak repetitive reverse voltage of 200V.

This diode is housed in an axial lead package, specifically a DO-204AC or DO-15, suitable for through-hole mounting. Its construction utilizes silicon for the diode element, ensuring reliable performance.

The 1N5059 is classified as a signal diode and is suitable for general-purpose applications. While specific forward voltage and reverse current details are available from some manufacturers, the primary specifications confirm its role as a standard signal diode.

1N5059 Quick Information

Product Type: Signal Diode

Canonical Name: 1N5059 Signal Diode

Subcategory: Signal Diode

1N5059 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1N5059 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N5059 Features

200V peak repetitive reverse voltage.
1A maximum average forward current.
Silicon diode element material.
Axial lead package for through-hole mounting.
General purpose signal diode.

1N5059 Applications

Suitable for signal diode applications in circuits.
Used in general-purpose switching and rectification.
Ideal for low current, high voltage switching.
Applicable in industrial automation and process control.
Suitable for axial lead diode configurations.
