| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,000 pcs
|
7000 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
2,580 pcs
|
2580 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,463 pcs
|
1463 pcs | On Request | 1 | On Request | On Request | 1842+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Output Current |

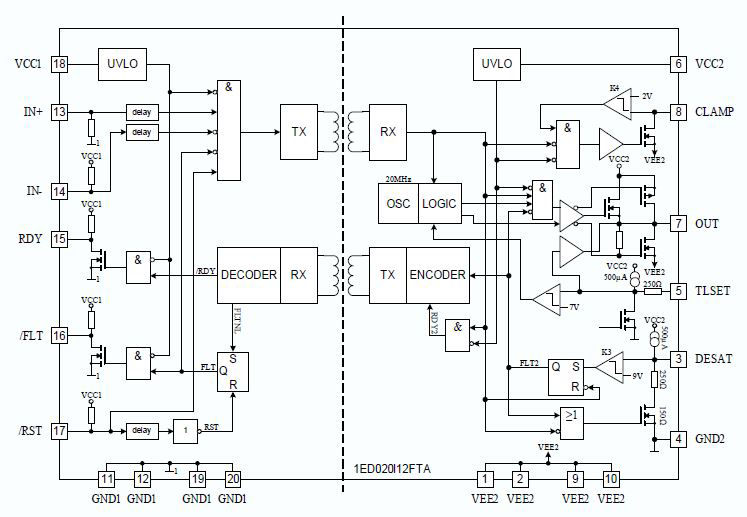

The Infineon 1ED020I12FTA is a galvanic isolated, single-channel IGBT driver IC housed in a PG-DSO-20 package. It provides a typical output current capability of 2A, making it suitable for driving 600V and 1200V IGBTs.
Key features include Vcesat-detection, active Miller clamping, and two-level turn-off functionality. The device utilizes coreless transformer technology for data transfer across the galvanic isolation barrier. All logic pins are 5V CMOS compatible, allowing direct connection to microcontrollers.
Typical applications for the 1ED020I12FTA include drive and auxiliary inverters for HEV and EV systems, as well as high-power DC/DC inverters. The integrated protection features enhance reliability in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1ED020I12FTA has a typical output current capability of 2 A.
It is suitable for 600V and 1200V IGBTs.
The 1ED020I12FTA is supplied in the PG-DSO-20 package.
