| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,889 pcs
|
200889 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Input Voltage | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Quiescent Current |

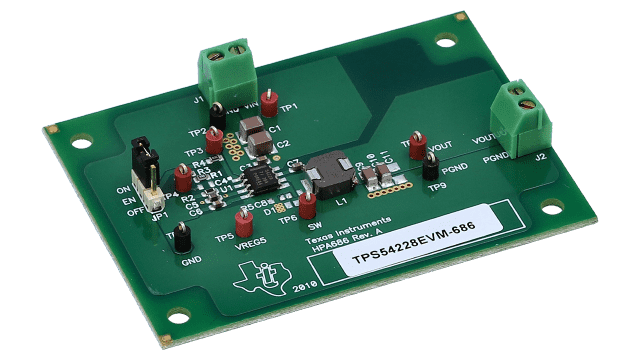

The Texas Instruments TPS54228 is a synchronous step-down DC/DC converter designed for power management applications. It features a wide input voltage range of 4.5V to 18V and can deliver an output current of up to 2A, with an adjustable output voltage ranging from 0.76V to 7V.
This device utilizes the D-CAP2 control mode, enabling fast transient response and low output ripple, making it suitable for use with ceramic output capacitors. Key electrical specifications include a switching frequency of 700 kHz, integrated FETs with low on-resistance (155 mΩ high-side, 108 mΩ low-side), and a typical quiescent current of 0.0008A. It also offers features like adjustable soft-start and cycle-by-cycle overcurrent protection.
The TPS54228 operates within a temperature range of -40°C to 85°C. It is available in multiple package options including HSOIC (DDA), VSON (DRC), and SOIC (D), with package sizes measuring 29.4 mm² (4.9 mm × 6 mm) and 9 mm² (3 mm × 3 mm).
Additional features include Auto-Skip Eco-Mode for high efficiency at light loads and a shutdown current of less than 10 µA. The device supports adjustable soft-start and prebiased soft start functionalities.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5 V to 18 V.
The maximum output current is 2 A.
The output voltage range is 0.76 V to 7 V.
The switching frequency is 700 kHz.
The operating temperature range is -40°C to 85°C.
The TPS54228 is available in HSOIC (DDA), VSON (DRC), and SOIC (D) packages.
