| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrier Type | |
| Bottom Termination | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Number of Circuits | |
| Number of Rows | |
| Number of Wire Entries | |
| Pitch | |
| SVHC Present | |
| Terminal Block Type | |
| Top Termination | |
| Voltage Rating | |
| Wire Gauge |

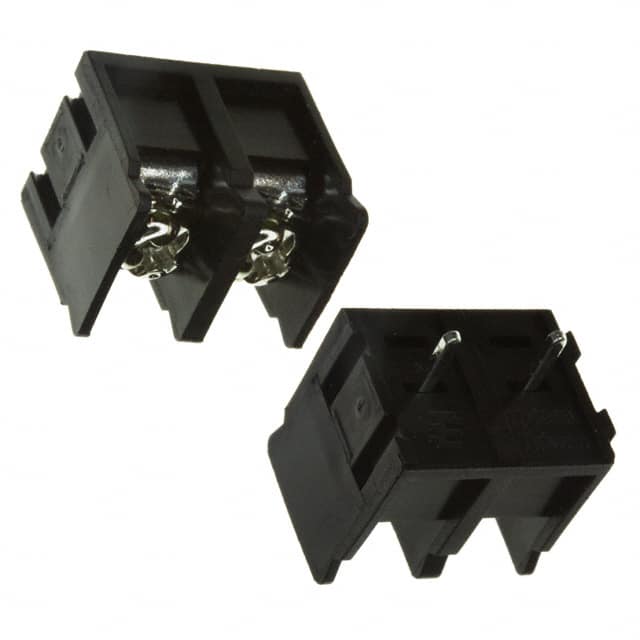

The TE Connectivity 1977477-2 is a 2-circuit barrier block designed for reliable wire-to-board connections. It features a 8.26mm (0.325") pitch and a dual-wall barrier construction for enhanced isolation between circuits. The terminal block accepts wire gauges from 16 to 22 AWG and is rated for 15A at 300V.
Termination is via screws with captive plate on top and PC pin on the bottom, making it suitable for soldered PCB mounting. The black housing supports side stacking (interlocking) to build multi-position assemblies without increasing board space.
This component is commonly used in power distribution, control panels, and industrial equipment where secure, serviceable connections are required. The barrier design prevents accidental shorting between adjacent terminals.
15A
300V
16-22 AWG
2 circuits
8.26mm (0.325")
Screws with captive plate on top, PC pin on bottom
RoHS3 Compliant (unverified)
