| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Centerline (Pitch) | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| Voltage Rating | |
| Wire size |

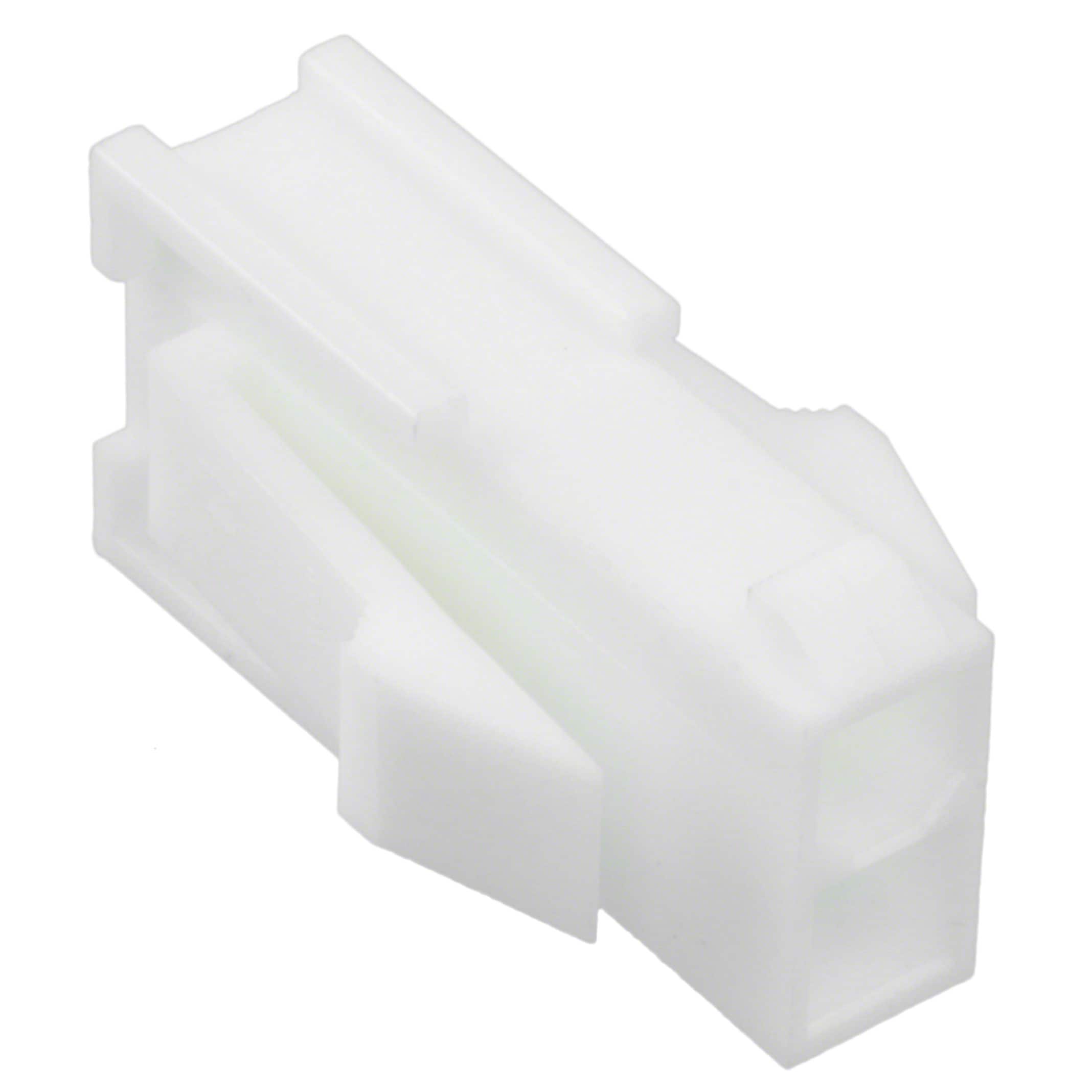

This TE Connectivity VAL-U-LOK rectangular connector housing is a 2 position, double row plug with male pin contacts. It features a locking ramp fastening system for secure mating and a panel mount snap-in design for easy installation. The housing is rated for 600VAC and up to 9A per line, and accepts discrete wire sizes 26-18 AWG via crimp termination.
The 4.2mm (0.165 in) centerline pitch and 4.2mm row spacing make this housing suitable for wire-to-wire, wire-to-board, and wire-to-panel applications in appliances and other equipment. The operating temperature range is -40°C to 105°C. The natural color housing is part of the VAL-U-LOK product family, which includes options for Terminal Position Assurance (TPA) devices on select variants.
This housing is designed for use with VAL-U-LOK crimp contacts (sold separately) and mates with VAL-U-LOK headers and receptacles. It is RoHS and REACH compliant per manufacturer data.
600VAC
9A per line
26-18 AWG
4.2 mm (0.165 in) centerline pitch
2 positions in 2 rows
Panel mount, snap-in
