Category	Headers, Plugs and Sockets
Manufacturer Name	Weidmüller
Color	Orange
Contact Mating Finish	Tin
Current	10 A
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature	-50°C ~ 120°C
Pitch	0.150" (3.81mm)
Plug Wire Entry	180°
Positions Per Level	6
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Type	Plug, Male Pins
Voltage	300 V
Wire Gauge or Range	0.2-1.5mmﾂｲ

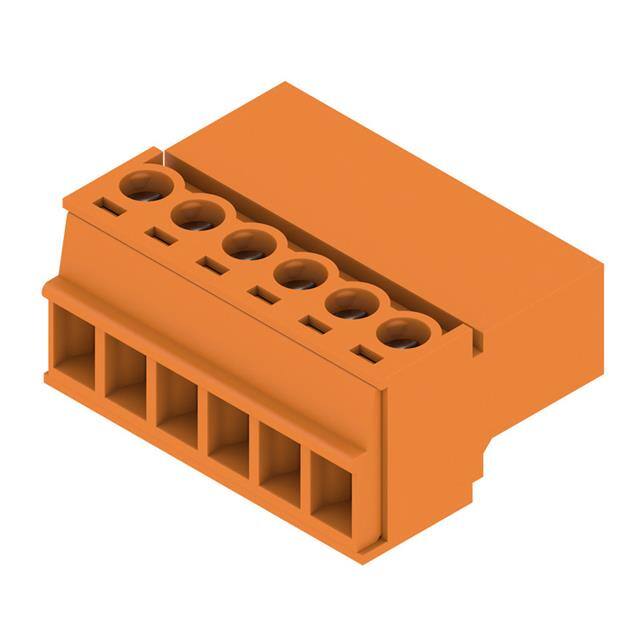

1969580000

1969580000 Specifications Quick View
