| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Screw Size | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

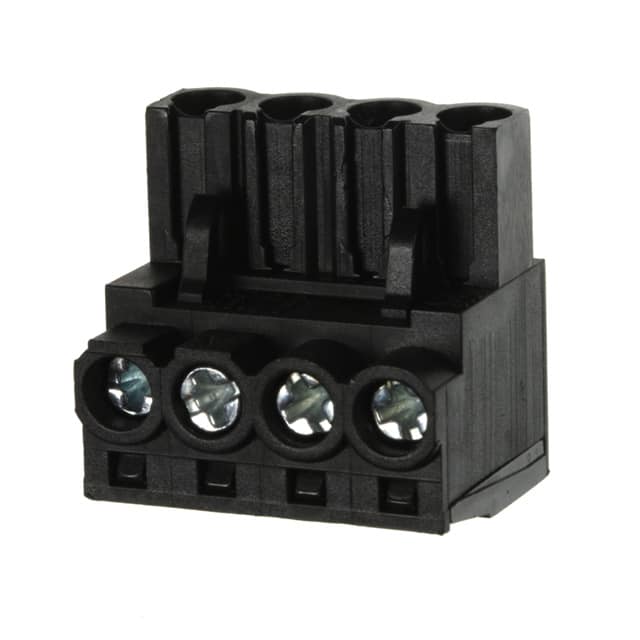

The Weidmüller BLZP 5.00/04/180 SN BK BX (1955550000) is a 4-position female plug-in connector designed for 5.00mm pitch terminal block systems. It features a clamping yoke connection for secure conductor termination with a screw size M 2.5 and a recommended torque range of 0.4-0.5 Nm. The connector accepts wire gauges from 0.2 to 4 mm² (26-12 AWG) with a stripping length of 7mm.
Electrical ratings are provided for both IEC and UL standards: rated current 19A (IEC) / 15A (UL) and rated voltage 400V (IEC) / 300V (UL). The housing is made of black PBT with a flammability rating of UL 94 V-0 and a comparative tracking index (CTI) of ≥200. Contacts are copper alloy with tin finish.
Designed for free hanging (in-line) mounting, the connector has retention latches on the non-wire side for secure mating. The operating temperature range is -25°C to 100°C. It is supplied in a box packaging with 100 pieces per box.
The connector has 4 positions (poles).
The pitch is 5.00mm (0.197 inches).
The connector is rated 19A/400V under IEC standards and 15A/300V under UL standards.
It uses a clamping yoke connection (screw clamp) with a screw size M 2.5 and tightening torque of 0.4-0.5 Nm.
It accepts 26-12 AWG wire (0.2-4 mm²).
