| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
388 pcs
|
388 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
388 pcs
|
388 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

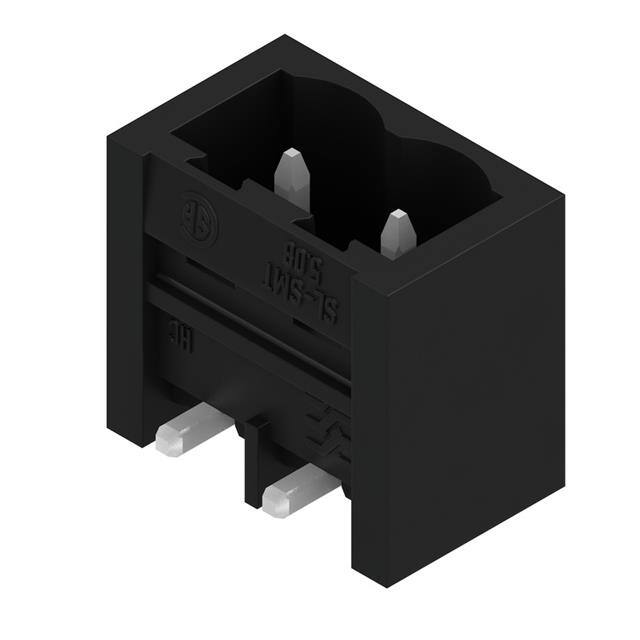

The Weidmüller 1877740000 is a terminal block header designed for wire-to-board connections in industrial control and power distribution applications. This shrouded header features 2 positions arranged in a single level with a 5.08mm pitch. The header is oriented at 90 degrees (right angle) and mounts under the board, allowing for compact PCB layouts. It uses through hole solder termination for reliable mechanical and electrical connections. The contact mating surface is finished with tin, and the housing is black. Electrically, the header is rated for 18.5A current and 300V voltage, suitable for moderate power applications. The operating temperature range is -50°C to 100°C, enabling use in harsh environments.
The header has 2 positions arranged in a single level.
The pitch is 5.08mm (0.200 inches).
The header is rated for 18.5A and 300V.
Through hole mounting with solder termination.
-50°C to 100°C.
