| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,247 pcs
|
5247 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,247 pcs
|
5247 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage |

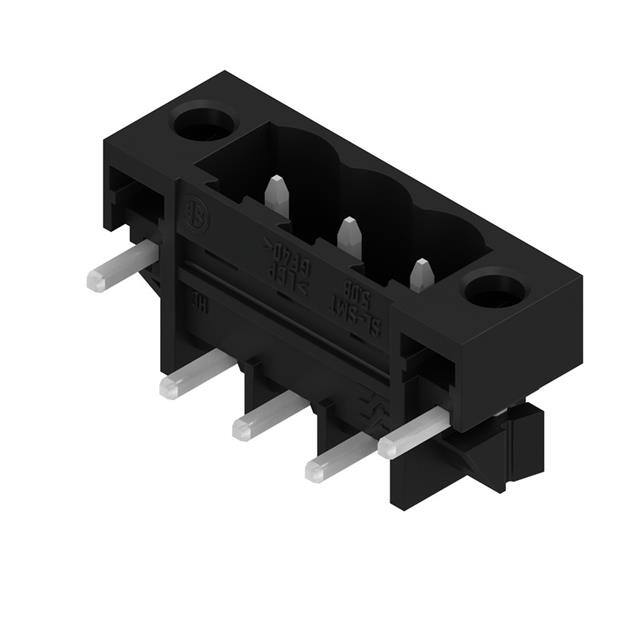

The Weidmüller 1876860000 is a 3-position terminal block header designed for reliable wire-to-board connections. It features a shrouded (4 side) male pin configuration with a 5.08mm pitch, making it suitable for industrial control and power distribution applications. The header is oriented at 90 degrees (right angle) and mounts under the board, with through hole solder termination for secure attachment. Electrical ratings include 18.5A current and 300V voltage, with an operating temperature range of -50°C to 100°C. The contact mating finish is tin, and the housing is black. Additional features include a mating flange for secure connector locking and solder retention for improved mechanical stability during assembly. This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
It has 3 positions in a single level.
The pitch is 5.08mm (0.200 inches).
The current rating is 18.5A.
The voltage rating is 300V.
It is through hole mounting with solder termination.
The operating temperature range is -50°C to 100°C.
It includes a mating flange and solder retention.
