| Category | |
| Manufacturer Name | |
| CTI | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Current | |
| Current Rating (IEC) | |
| Current Rating (UL) | |
| Flammability Rating | |
| Housing Material | |
| Mating Orientation | |
| Mounting Type | |
| Net Weight | |
| Number of Levels | |
| Number of Positions | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| Solder Pin Length | |
| Standard Package Quantity | |
| Stripping Length | |
| Voltage | |
| Voltage Rating (IEC) | |
| Voltage Rating (UL) | |
| Wire Cross Section | |
| Wire Gauge | |
| Wire Termination |

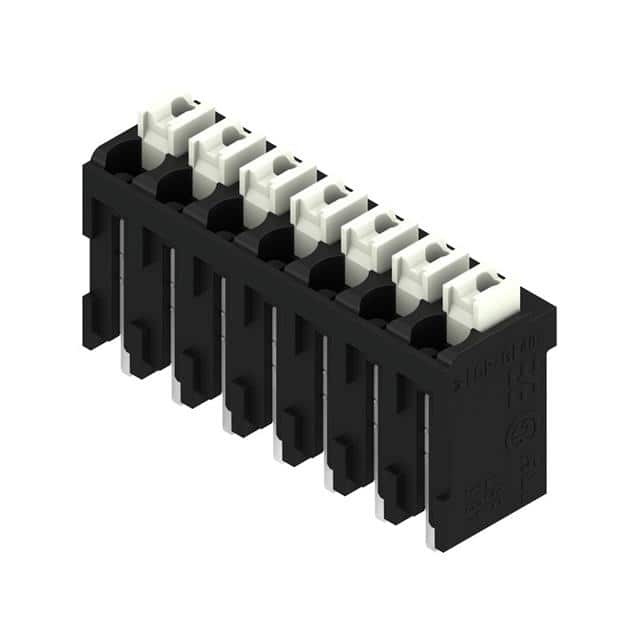

The Weidmüller 1875370000 is a 7-position PCB terminal block from the OMNIMATE Signal series, featuring a 3.81mm pitch. It utilizes a PUSH IN spring connection for tool-less wire termination, accepting 16-24 AWG (0.2-1.5 mm²) wires. The terminal block is rated for 12A/300V (UL) and 17.5A/320V (IEC). It is designed for surface mount (SMT) reflow soldering with a solder pin length of 1.5mm. The housing is made of LCP GF with a UL 94 V-0 flammability rating, and contacts are copper alloy with tin plating. The product is supplied in tape on reel packaging with a standard quantity of 175 pieces. It is RoHS3 compliant and has an MSL of 1 (unlimited).
7 positions.
3.81 mm.
12 A (UL) and 17.5 A (IEC).
300 V (UL) and 320 V (IEC).
PUSH IN spring connection.
Surface mount (SMT) reflow soldering.
16-24 AWG (0.2-1.5 mm²).
