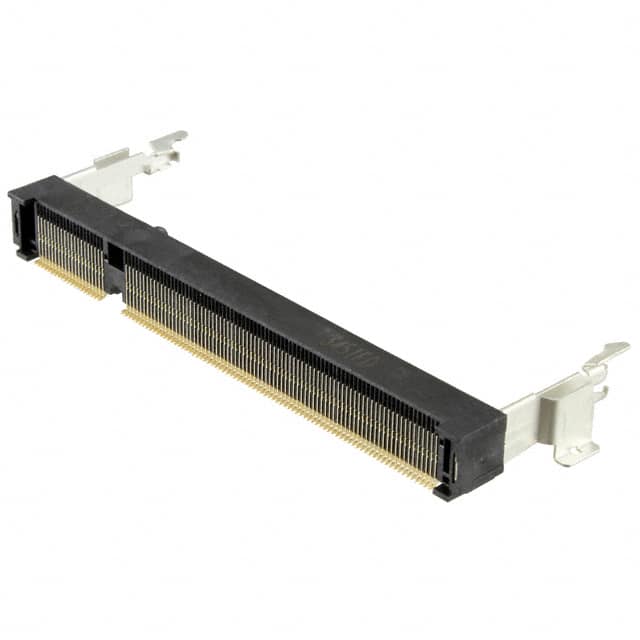

1827341-4 TE Connectivity 1827341-4 is a 200-position DDR2 SODIMM socket with surface mount right angle termination. Features gold contact finish, board guide, and latches.
Mfr Part #:

1827341-4

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1827341-4 is a 200-position DDR2 SODIMM socket with surface mount right angle termination. Features gold contact finish, board guide, and latches.
✓ Total Stock: 500 pcs

1827341-4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request 2011 On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1827341-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Contact Finish
Features
Memory Type
Mounting Feature
Mounting Type
Number of Positions
Tape & Reel
View Similar Products (0)

1827341-4 Description

Short technical summary and product information.

The TE Connectivity 1827341-4 is a 200-position SO-DIMM (Small Outline Dual In-line Memory Module) socket designed for DDR2 SDRAM memory modules. It features a surface mount, right angle mounting style, making it suitable for low-profile memory applications where space is constrained.



The connector includes a board guide for ease of module insertion and latches to securely retain the memory module. Contacts are finished in gold for reliable electrical performance over repeated mating cycles. The mounting feature is described as normal, standard - top.



This inline module socket is intended for use in memory connector applications and is categorized under connectors, interconnects. The component accepts DDR2 type SDRAM modules and offers a 200-pin configuration.

1827341-4 Quick Information

Product Type: DDR2 SODIMM Socket
Series: 1827341
Canonical Name: 1827341-4 TE Connectivity SODIMM SMT Right Angle Socket
Subcategory: SODIMM

1827341-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1827341-4 Features

  • 200-position DDR2 SODIMM memory socket.
  • Surface mount right angle mounting style.
  • Gold contact finish for reliable connections.
  • Includes board guide and latches.
  • Accepts standard top-mount SODIMM modules.

1827341-4 Applications

  • Used in laptop and notebook memory modules.
  • Fits DDR2 SDRAM SO-DIMM memory cards.
  • Ideal for compact embedded system designs.
  • Applications requiring right-angle memory connections.

1827341-4 FAQs

6 frequently asked questions generated from this part’s specifications.
What type of memory module does this socket accept?

DDR2 SDRAM.

How many positions does this connector have?

200 positions.

What is the mounting style of this connector?

Surface mount, right angle.

What is the contact finish on this socket?

Gold.

Does this connector include any alignment or retention features?

Yes, it includes a board guide and latches.

What connector style is this?

SODIMM.

1827341-4 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
1473149-4
1473149-4
TE Connectivity
SODIMM connector from TE Connectivity with 200 positions, right angle surface mount, and gold flash contacts. Features board guide and latches for secure module retention.
View Part
1473005-4
1473005-4
TE Connectivity
1473005-4 is a 200 position DDR2 SDRAM SODIMM socket from TE Connectivity. It features surface mount right angle mounting with board guide and latches.
View Part
1717254-4
1717254-4
TE Connectivity
TE Connectivity 1717254-4 is a 200-position SODIMM socket designed for DDR2 SDRAM modules. It features surface mount right angle orientation, gold flash contacts, and includes board guide and latches.
View Part
