Mfr Part #:

1473005-4

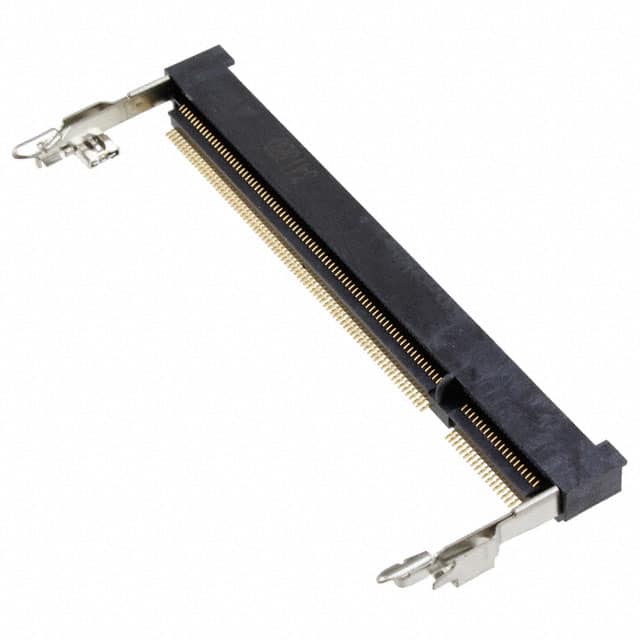

1473005-4 is a 200 position DDR2 SDRAM SODIMM socket from TE Connectivity. It features surface mount right angle mounting with board guide and latches.

✓ Total Stock: 7,930 pcs

1473005-4 Available from 6 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	4,200 pcs On Request	4200 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	3,421 pcs On Request	3421 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	169 pcs On Request	169 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Tokyo Device ✓ Non-Authorised Inventory information	131 pcs On Request	131 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	14+	On Request	On Request

1473005-4 Description

Short technical summary and product information.

The 1473005-4 is a 200 position SODIMM socket designed for DDR2 SDRAM modules, manufactured by TE Connectivity. This connector features a surface mount, right angle orientation, making it suitable for compact designs where space is at a premium.

The socket includes board guide and latches for secure module retention. Contacts are finished with gold flash for reliable electrical connections. The mounting feature is standard top, normal type. This component is RoHS3 compliant and has an MSL rating of 1 (unlimited).

1473005-4 Quick Information

Product Type: Memory Connector Socket

Canonical Name: 1473005-4 TE Connectivity 200 Position SODIMM DDR2 SDRAM Socket

Subcategory: DDR2 SDRAM

1473005-4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1473005-4 Features

200 position DDR2 SDRAM SODIMM socket.
Surface mount, right angle mounting.
Gold flash contact finish.
Includes board guide and latches.
RoHS3 compliant with MSL 1 rating.

1473005-4 Applications

Used in laptops and compact computing devices.
Ideal for DDR2 memory module interfaces.
Suitable for surface mount assembly processes.

1473005-4 FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does this SODIMM socket have?

200 positions.

What type of memory is this socket compatible with?

DDR2 SDRAM.

What is the mounting type of this connector?

Surface Mount, Right Angle.

Does this socket include any mechanical features for module retention?

Yes, it includes board guide and latches.

What is the contact finish?

Gold flash.

Is this component RoHS compliant?

RoHS3 Compliant.
