| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CTI (Comparative Tracking Index) | |
| Clamping Range | |
| Color | |
| Contact Material | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Hole Diameter | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Poles | |
| Packaging Method | |
| Pitch | |
| Positions Per Level | |
| Rated Current (20°C) | |
| Rated Current (40°C) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (DIN III/2 & III/3) | |
| Rated Voltage (DIN, II/2) | |
| Solder Pin Length | |
| Standard Package Quantity | |
| Storage Temperature | |
| Storage Temperature Range | |
| Stripping Length | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

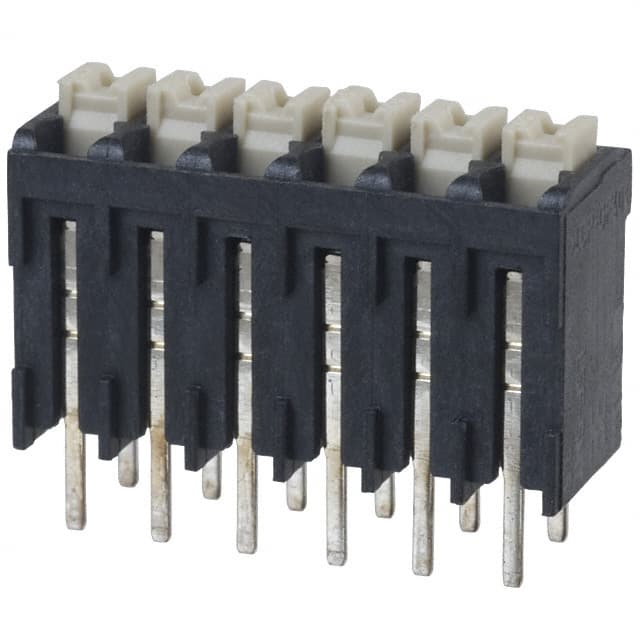

The Weidmüller 1825680000 (LSF-SMT 3.5/6/180) is a 6-pole PCB terminal block designed for push-in spring connection. It has a 3.5 mm pitch and accepts wires from 16 to 24 AWG (0.13 to 1.5 mm²) with an 8 mm stripping length. The terminal block is rated for 12 A continuous current (simplified; datasheet shows up to 16 A at 20°C and 14 A at 40°C) and 300 V (UL/CSA). DIN ratings are 320 V for overvoltage class II/pollution severity 2 and 160 V for III/2 and III/3.
The insulating material is LCP GF with a flammability rating of UL 94 V-0. The contact material is copper alloy with tin plating. The component is mounted via through-hole reflow soldering with a solder pin length of 3.5 mm and a fitting hole diameter of 1.1 mm. The storage temperature range is -25°C to 55°C.
This terminal block is suitable for industrial control, building automation, and general PCB wiring applications where reliable push-in termination is required. It is supplied in tubes of 25 pieces.
6 poles.
3.5 mm.
The listed current rating is 12 A, with datasheet showing up to 16 A at 20°C and 14 A at 40°C depending on number of pins.
300 V (UL/CSA), with DIN ratings of 320 V (II/2) and 160 V (III/2 & III/3).
Through-hole reflow solder connection.
16-24 AWG (0.13-1.5 mm²).
Push-in spring connection.
