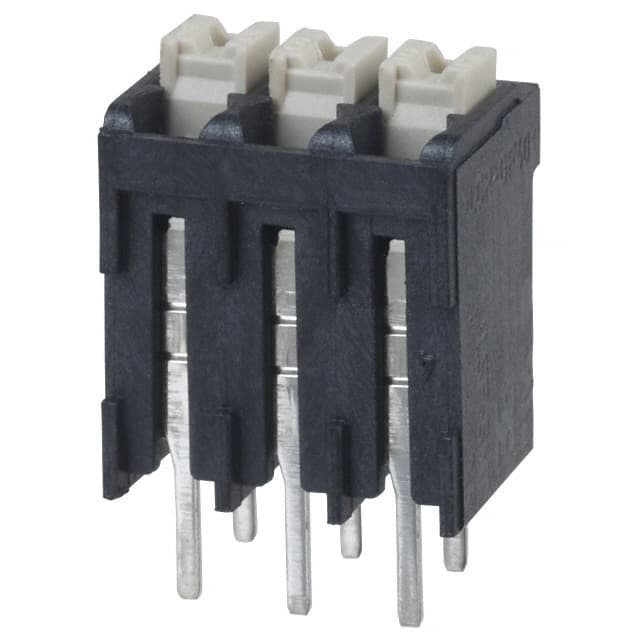

The Weidmüller 1825650000 is a 3-pole PCB terminal block from the LSF-SMT series, designed for wire-to-board applications. It uses a push-in spring connection system with a screwless push-button clamp for fast, tool-free wiring of solid and stranded conductors from 16 to 24 AWG (0.13 to 1.5 mm²). The part has a 3.5 mm pitch and a vertical (180°) mating orientation relative to the PCB.
Electrical ratings are 12 A current and 300 V voltage (UL/CSA group D). The insulating body is made of black LCP GF material with UL 94 V-0 flammability rating and a CTI of 175. Contacts are copper alloy with a tinned surface. The solder pin length is 3.5 mm, and the required stripping length is 8 mm.
The terminal block is packaged in tubes of 49 pieces and is intended for through-hole reflow soldering. It is RoHS3 compliant, REACH unaffected, and has MSL 1 (unlimited) moisture sensitivity.
3.5 mm
3 poles
12 A (UL/CSA rating per pole)
300 V (UL/CSA group D)
16-24 AWG (0.13-1.5 mm²)
Through hole, with reflow solder connection
Push In (screwless push-button clamp)
