| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Color | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| UL Flammability Rating | |
| Voltage Rating | |
| Width |

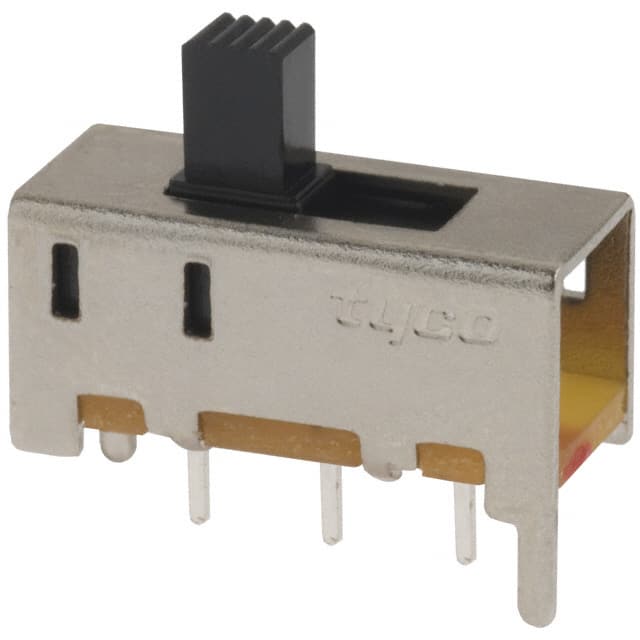

This TE Connectivity 1825255-5 slide switch offers a reliable solution for circuit control. It features a Single Pole Double Throw (SPDT) configuration, allowing for versatile switching operations. The switch is rated for 125V AC with a current carrying capacity of 300mA.
Designed for through-hole mounting, this slide switch has a vertical mounting angle and a PC pin termination style. The actuator is made of POM material and has a black color. The contact base material is copper alloy with a silver finish, ensuring good conductivity.
Key specifications include 2 positions, an On-Off-On operating function, and an operating temperature range of -20°C to 85°C. The switch also meets UL 94-HB flammability rating and is compliant with EU RoHS Directive 2011/65/EU and ELV Directive 2000/53/EC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 125 VAC.
The current rating is 300mA (AC).
It uses through-hole mounting.
The operating temperature range is -20°C to 85°C.
The RoHS status is RoHS3 Compliant.
