| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Body Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Height Above Board | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Washable |

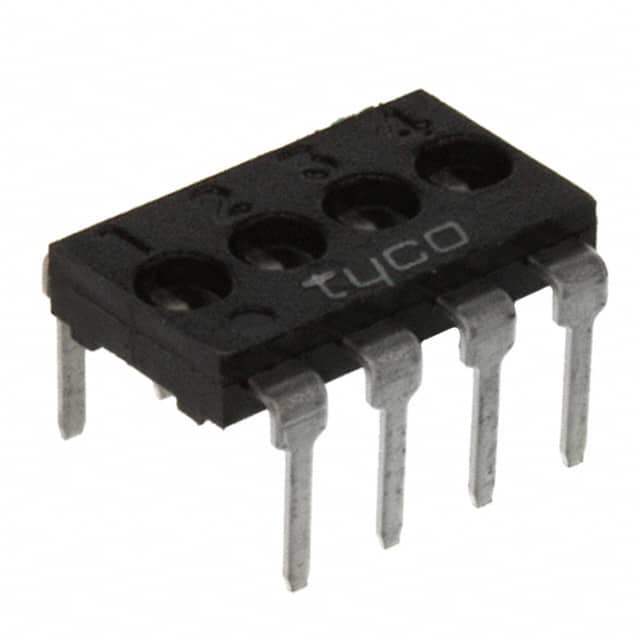

This TE Connectivity 1825190-3 is a programmable DIP switch designed for Through Hole mounting. It offers 4 positions and features a Breakable (Shunt) actuator, with actuator levels available in Flush and Recessed options. The switch is constructed with a Copper Alloy contact material and Tin contact finish, ensuring reliable performance.
With a pitch of 2.54mm (0.100"), a height above board of 2.00mm (0.079"), and a length of 10.16mm (0.400"), this DIP switch is suitable for various PCB applications. It is washable and operates within a wide temperature range of -55°C to 105°C. The body material is Thermoplastic.
The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. The REACH status is REACH Affected. This component is part of the TE Connectivity ALCOSWITCH Switches 7600 series.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 105°C.
The 1825190-3 DIP switch has 4 positions.
The 1825190-3 DIP switch uses a Breakable (Shunt) actuator.
The mounting type for the 1825190-3 DIP switch is Through Hole.
The contact material is Copper Alloy and the contact finish is Tin.
The pitch of the 1825190-3 DIP switch is 2.54mm (0.100").
