| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Body Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

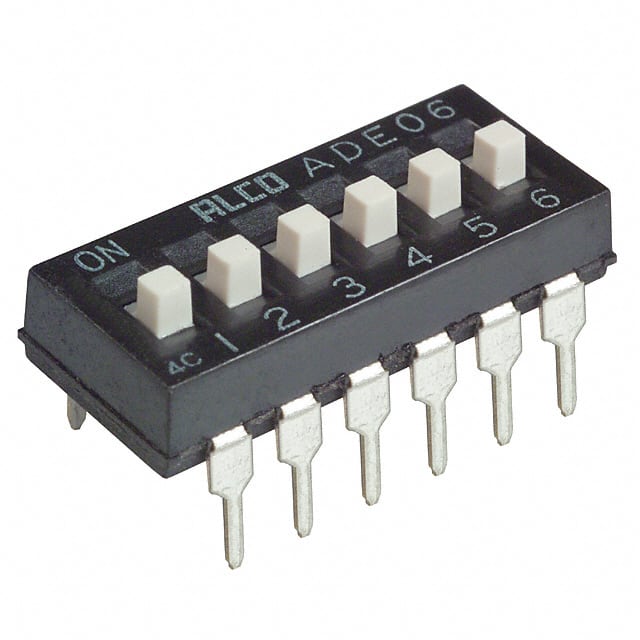

The TE Connectivity ALCOSWITCH Switches 1825057-5 is a Slide DIP Switch designed for various electronic applications. It features a Single Pole Single Throw (SPST) circuit configuration with 6 positions.
This component is rated for a current of 100mA and a voltage of 24VDC. The actuator type is a standard slide with a raised level. The contact material is Copper Alloy with a Gold finish, ensuring reliable connections. The switch is designed for Through Hole mounting and has a PC Pin termination style.
With a pitch of 2.54mm (0.100"), the switch is washable and operates within a temperature range of -30°C to 85°C. The body material is Polyphenylene Sulfide (PPS). The height above the board is 5.80mm (0.228"). It offers a mechanical and electrical life of 1,000 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1825057-5 DIP Switch features an SPST circuit.
The 1825057-5 DIP Switch has 6 positions.
The current rating for the 1825057-5 DIP Switch is 100mA.
The voltage rating for the 1825057-5 DIP Switch is 24VDC.
The 1825057-5 DIP Switch uses a standard slide actuator with a raised level.
The operating temperature range for the 1825057-5 DIP Switch is -30°C to 85°C.
Yes, the 1825057-5 DIP Switch is washable.
