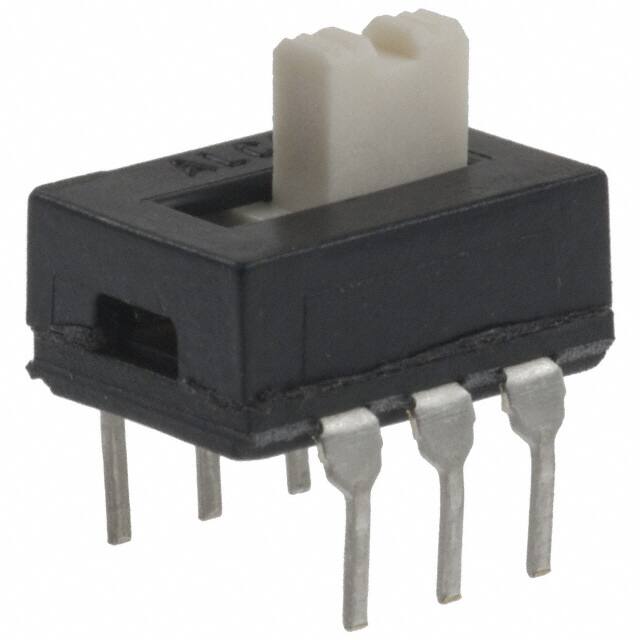

1825010-1 The TE Connectivity 1825010-1 is a DPDT slide switch with a 300mA (AC) current rating and 115V voltage rating. It features a standard actuator and PC pin termination.
Mfr Part #:

1825010-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 1825010-1 is a DPDT slide switch with a 300mA (AC) current rating and 115V voltage rating. It features a standard actuator and PC pin termination.
✓ Total Stock: 677 pcs
$ Price Range: $0.75

1825010-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
626 pcs
On Request
626 pcs On Request 1 On Request On Request On Request On Request On Request
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
51 pcs
On Request
51 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1825010-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Timing
Current Rating (Amps)
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

1825010-1 Description

Short technical summary and product information.

This TE Connectivity 1825010-1 is a DPDT slide switch designed for through-hole mounting. It operates with a standard actuator and features PC pin termination. The switch is rated for 300mA at 115V AC and has a contact material of copper alloy with a silver finish.



With an operating temperature range of -40°C to 80°C, this switch is suitable for various applications. The contact timing is shorting (MBB), and the switch function is On-On. It is classified under RoHS3 compliance and has an MSL of 1.



Key specifications include an actuator length of 2.79mm, making it a compact component for integration into electronic assemblies. The through-hole mounting type ensures secure placement on printed circuit boards.

1825010-1 Quick Information

Product Type: Slide Switch
Canonical Name: TE Connectivity 1825010-1 Slide Switch
Subcategory: Slide Switch

1825010-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1825010-1 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

1825010-1 Features

  • DPDT slide switch with 300mA (AC) rating.
  • Rated for 115V AC operation.
  • Through hole mounting for PCB integration.
  • Shorting (MBB) contact timing.
  • Operating temperature range -40°C to 80°C.

1825010-1 Applications

  • Suitable for switching low-voltage circuits.
  • Used in electronic control panels.
  • Ideal for signal routing applications.
  • Applicable in consumer electronic devices.

1825010-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the switch?

The switch has an operating voltage of 115 V.

What is the current rating of the switch?

The switch is rated for 300mA (AC).

What is the operating temperature range?

-40°C to 80°C.

What type of termination does the switch use?

It uses PC pin termination.

What is the contact material?

The contact material is copper alloy.

What is the contact finish?

The contact finish is silver.
