| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Body Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

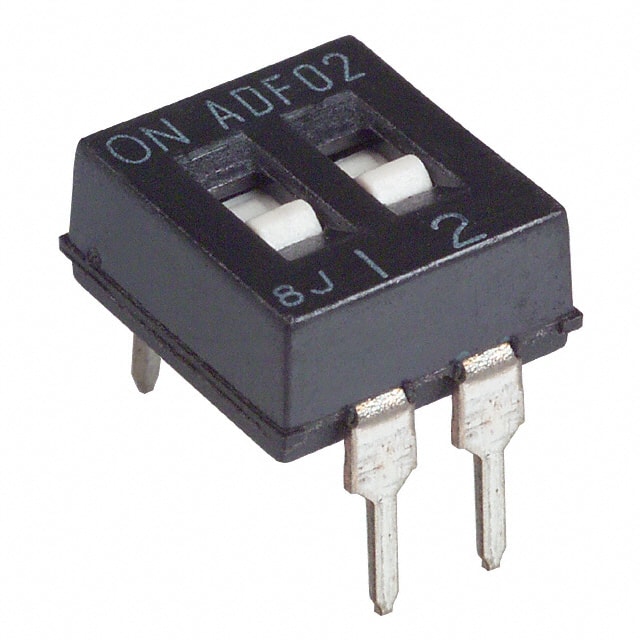

This TE Connectivity ALCOSWITCH 1825002-1 is a slide-actuated DIP switch designed for through-hole mounting. It features a Single Pole Single Throw (SPST) circuit configuration with 2 positions.
The switch is rated for a current of 25mA and a voltage of 24VDC. It has gold-plated copper alloy contacts and a Polyphenylene Sulfide (PPS) body. The actuator level can be flush or recessed, and the switch is washable.
With an operating temperature range of -30°C to 85°C, this DIP switch is suitable for various electronic applications. The pitch between pins is 2.54mm (0.100").
Key specifications include a height above board of 0.189" (4.80mm) and a length of 0.2". The series is ADF.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 25mA.
The voltage rating is 24VDC.
The operating temperature range is -30°C to 85°C.
Yes, the 1825002-1 DIP switch is washable.
The 1825002-1 DIP switch has a slide actuator with a standard type.
The pitch is 2.54mm (0.100").
