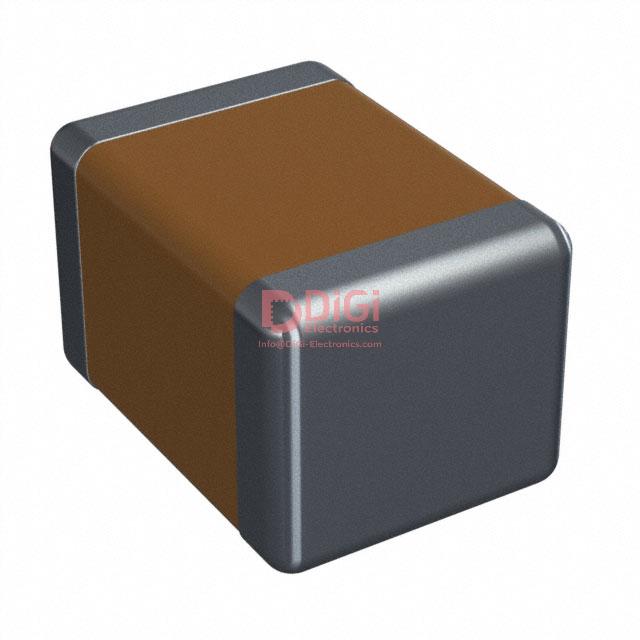

1812HA101JAT1A The KYOCERA AVX 1812HA101JAT1A is a ceramic capacitor with a capacitance of 100 pF and a high voltage rating of 3000V (3kV). It features a C0G/NP0 temperature coefficient and a ±5% tolerance.
Mfr Part #:

1812HA101JAT1A

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The KYOCERA AVX 1812HA101JAT1A is a ceramic capacitor with a capacitance of 100 pF and a high voltage rating of 3000V (3kV). It features a C0G/NP0 temperature coefficient and a ±5% tolerance.
✓ Total Stock: 126,263 pcs
$ Price Range: $0.05

1812HA101JAT1A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Key Source ✓
Non-Authorised Inventory information
126,263 pcs
On Request
126263 pcs On Request 1 On Request On Request 25+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1812HA101JAT1A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
SVHC Present
Tape & Reel
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
View Similar Products (0)

1812HA101JAT1A Description

Short technical summary and product information.

This KYOCERA AVX 1812HA101JAT1A is a surface mount MLCC (Multi-Layer Ceramic Capacitor) designed for general-purpose applications. It offers a capacitance of 100 pF with a tight tolerance of ±5% and a high rated voltage of 3000V (3kV).



The capacitor utilizes a C0G/NP0 dielectric, known for its stability over temperature and voltage variations, operating within a range of -55°C to 125°C. The component is housed in an 1812 (4532 Metric) package, measuring 0.181 inches by 0.126 inches, with a maximum thickness of 0.057 inches.



Its robust construction and high voltage rating make it suitable for various electronic circuits requiring reliable capacitance performance under demanding conditions. The surface mount design facilitates automated assembly processes.

1812HA101JAT1A Quick Information

Product Type: Ceramic Capacitor
Series: HA
Canonical Name: 1812HA101JAT1A Ceramic Capacitor
Subcategory: MLCC

1812HA101JAT1A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1812HA101JAT1A Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

1812HA101JAT1A Features

  • 100 pF capacitance with ±5% tolerance.
  • Rated for 3000V (3kV) operation.
  • Stable C0G, NP0 temperature coefficient.
  • Surface mount MLCC in 1812 package.
  • Wide operating temperature range.

1812HA101JAT1A Applications

  • Suitable for high voltage circuits.
  • General purpose capacitor applications.
  • Ideal for stable signal processing.
  • Used in power supply filtering.

1812HA101JAT1A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the 1812HA101JAT1A capacitor?

The capacitance is 100 pF.

What is the rated voltage for the 1812HA101JAT1A ceramic capacitor?

The rated voltage is 3000V (3kV).

What temperature coefficient does the 1812HA101JAT1A capacitor have?

It has a C0G, NP0 temperature coefficient.

What is the tolerance of the 1812HA101JAT1A capacitor?

The tolerance is ±5%.

What is the operating temperature range for this capacitor?

The operating temperature range is -55°C to 125°C.

What are the dimensions of the 1812HA101JAT1A capacitor?

The dimensions are 0.181" L x 0.126" W (4.60mm x 3.20mm).

What is the maximum thickness of the 1812HA101JAT1A capacitor?

The maximum thickness is 0.057" (1.45mm).
