Mfr Part #:

1794860000

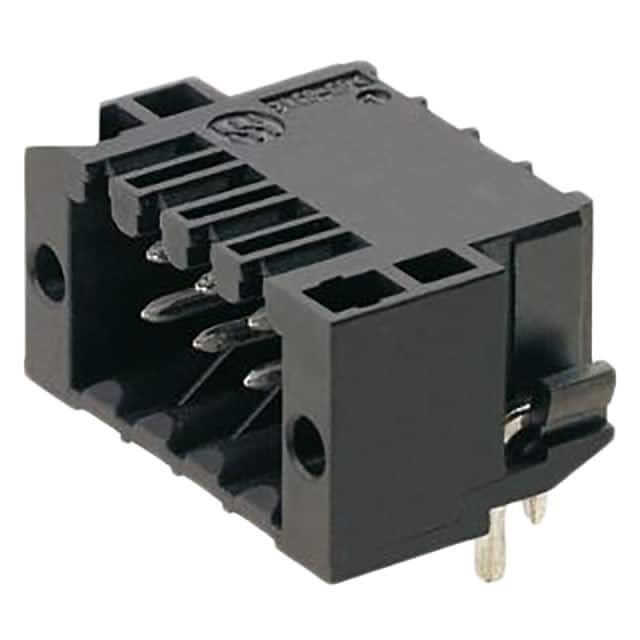

Weidmüller 1794860000 is a 6-position, 3.5mm pitch, right-angle shrouded header with through-hole reflow solder connection. Rated at 10A and 150V.

✓ Total Stock: 100 pcs

1794860000 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1794860000 Description

Short technical summary and product information.

The Weidmüller 1794860000 is a 6-position PCB plug-in connector header from the S2L-SMT series. It features male pins arranged in two rows with 3 positions per level, a 3.5mm pitch, and a right-angle orientation. The header is shrouded on four sides and designed for through-hole reflow (THR) soldering, with a solder pin length of 3.2mm and a fitting hole diameter of 1.3mm.

Electrically, the header is rated for 10A continuous current at 20°C (8.5A at 40°C) and a voltage rating of 150V per UL 1059 Group D. It also meets overvoltage category III/2 at 125V and II/2 at 160V, with impulse withstand voltages up to 2.5kV. The insulating material is LCP GF (Liquid Crystal Polymer with glass fiber), black in color, with a flammability class of UL 94 V-0 and a Comparative Tracking Index (CTI) of ≥175.

Mechanical features include a mating flange and solder retention for secure board attachment. The header is supplied in a box of 50 pieces. It is suitable for industrial control systems, automation, and other applications requiring reliable PCB connections in compact spaces.

1794860000 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)

Series: S2L-SMT

Canonical Name: Weidmüller S2L-SMT 3.5/90LF Box 6-Position Right-Angle Header, 3.5mm Pitch, Through-Hole Reflow

Subcategory: Shrouded Right Angle Header

1794860000 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

1794860000 Features

6-position, 2-row right-angle shrouded header.
3.5mm pitch with 3.2mm solder pin length.
Rated for 10A at 20°C and 150V UL.
LCP GF insulation with UL 94 V-0 flammability.
Features mating flange and solder retention.

1794860000 Applications

Used in PCB connection systems for industrial control.
Suitable for through-hole reflow soldering processes.
Ideal for compact wiring applications requiring 3.5mm pitch.

1794860000 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this header have?

6 positions arranged in 2 levels with 3 positions per level.

What is the pitch?

3.5mm (0.138 inches).

What is the current rating?

10A at 20°C, derated to 8.5A at 40°C.

What is the voltage rating?

150V per UL 1059 Group D; also rated 125V for overvoltage III/2 and 160V for II/2.

What is the mounting type?

Through-hole reflow (THR) solder connection.

What is the operating temperature range?

Constant operating temperature -25°C to 100°C per datasheet.

What is the insulating material?

LCP GF (Liquid Crystal Polymer with glass fiber), flammability class UL 94 V-0, CTI ≥175.

Category	Headers, Plugs and Sockets
Manufacturer Name	Weidmüller
Color	Black
Contact Mating Finish	Tin
Current	10 A
Current Rating	10 A
Features	Mating Flange, Solder Retention
Halogen Free	No
Header Orientation	90°, Right Angle
Industrial Grade	Yes
Lead Spacing	3.5 mm
Lead Style	Solder
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	6
Operating Temperature	-50°C ~ 100°C
Operating Temperature Range	-50°C ~ 100°C
Pitch	3.5mm (0.138")
Positions Per Level	3
SVHC Present	Not Present
Storage Temperature	-25.0°C ~ 55.0°C
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage	150 V
Voltage Rating	150 V
