| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Halogen Free | |
| Header Orientation | |
| Industrial Grade | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

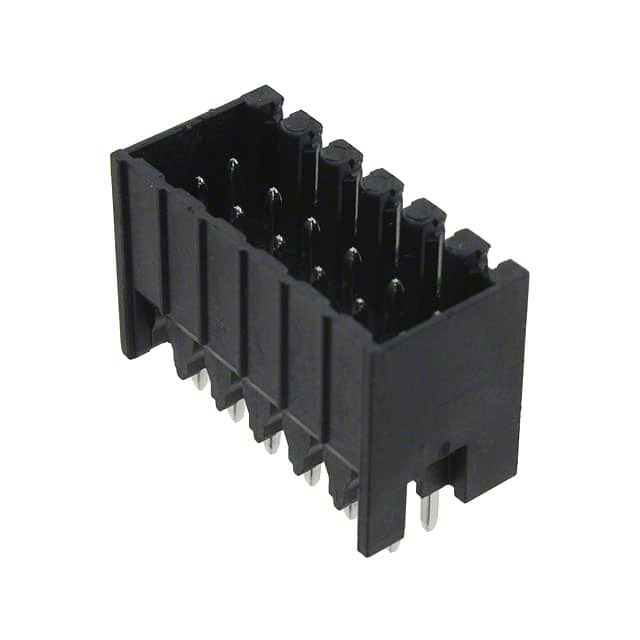

The Weidmüller 1794560000 is a 12-pole PCB plug-in connector from the S2L-SMT series, designed as a male header with a 3.50mm pitch. It features two levels with six positions per level, vertical orientation, and a 180° outgoing elbow. The connector is terminated via reflow soldering, with a solder pin length of 3.5mm and a fitting hole diameter of 1.3mm.
Electrically, it is rated for 10A continuous current at 20°C (8.5A at 40°C) and voltage ratings vary by overvoltage class: up to 160V for II/2, 125V for III/2, and 50V for III/3. Impulse withstand voltage reaches 2.5kV (III/3). The housing is made of black LCP GF (Liquid Crystal Polymer with glass fiber) with a flammability rating of UL 94 V-0 and a CTI of ≥175. Contact base material is copper alloy with tin plating.
Operating temperature range is -25°C to 100°C, with storage from -25°C to 55°C at up to 93% relative humidity. The connector is compliant with IP10 shock protection (DIN VDE 0470) and is codable. Standard package quantity is 50 pieces.
The header has 12 positions, arranged in two levels of 6 positions each.
The pitch is 3.50mm (0.138 inches).
The rated current is 10A at 20°C and 8.5A at 40°C.
Voltage rating depends on overvoltage class: 150V (UL), 160V (II/2), 125V (III/2), 50V (III/3). CSA rating is 50V.
The connector is designed for reflow solder mounting (SMT).
The constant operating temperature range is -25°C to 100°C.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be treated as low confidence.
