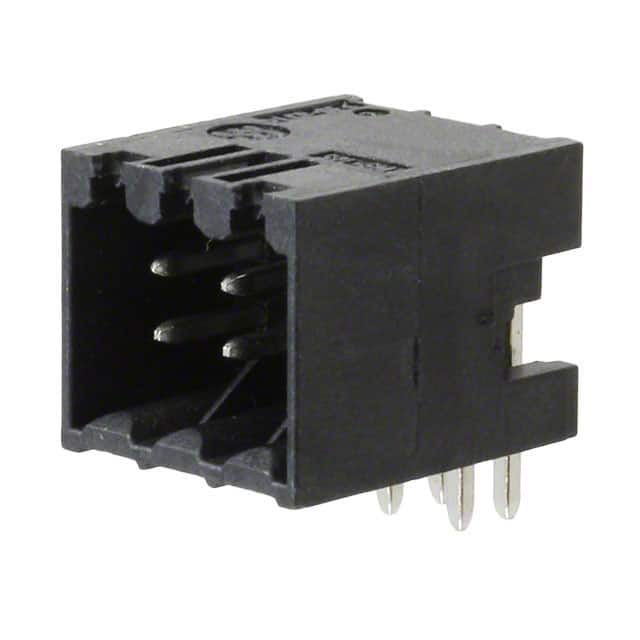

1794210000 Weidmüller 1794210000 is a 6-position (2x3) 3.5mm pitch right angle male header for PCB mounting with THR solder connection.
Mfr Part #:

1794210000

Available from 2 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller 1794210000 is a 6-position (2x3) 3.5mm pitch right angle male header for PCB mounting with THR solder connection.
✓ Total Stock: 192 pcs

1794210000 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
92 pcs
On Request
92 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1794210000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Base Material
Contact Mating Finish
Current
Header Orientation
Industrial Grade
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Number of Rows
Operating Temperature
Pitch
Positions Per Level
Storage Temperature
Termination Style
Type
Voltage
View Similar Products (0)

1794210000 Description

Short technical summary and product information.

The Weidmüller 1794210000 is a 6-position, 2-row PCB plug-in connector with a pitch of 3.50mm (0.138 inches). It features a right-angle orientation (90°) and uses a through-hole reflow (THR) solder connection for reliable PCB attachment. The header is rated for 10A at 20°C and 8.5A at 40°C, with a maximum UL voltage rating of 150V and IEC ratings up to 160V depending on overvoltage class and pollution severity. It offers an IP10 electric shock protection rating and is made with LCP GF insulating material with a UL 94 V-0 flammability class. The contacts are copper alloy with a tin-plated surface. Operating temperature ranges from -25°C to 100°C. The component is supplied in a box of 50 pieces.

1794210000 Quick Information

Product Type: Terminal Block Header, Male Pins
Series: S2L-SMT 3.5/90G
Canonical Name: Weidmüller 1794210000 S2L-SMT3.5/6/90G SN PCB Plug-in Connector
Subcategory: Headers

1794210000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1794210000 Features

  • 6-position 2-row right angle header.
  • 3.50mm pitch for compact designs.
  • Rated for 10A at 20°C.
  • UL 94 V-0 flammability rating.
  • THR solder connection for reflow soldering.

1794210000 Applications

  • PCB mounting in industrial control systems.
  • Used in power distribution and signal connections.
  • Ideal for tight space constraints.

1794210000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

The header has 6 positions arranged in 2 rows with 3 positions per level.

What is the pitch?

The pitch is 3.50mm (0.138 inches).

What is the current rating?

Rated current is 10A at 20°C and 8.5A at 40°C.

What is the voltage rating?

UL rated voltage is 150V. IEC rated voltages: 50V (III/3), 125V (III/2), 160V (II/2).

What is the mounting type?

Through Hole, Reflow (THR) solder connection.

What is the operating temperature range?

Constant operating temperature range is -25°C to 100°C.

What is the insulation material?

Insulating material is LCP GF (Liquid Crystal Polymer with glass fiber), flammability class UL 94 V-0.
