| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Blade Size | |
| Clamping Screw | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section Flexible | |
| Conductor Cross Section with Ferrule | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Insulating Material | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Package Type | |
| Standard Package Quantity | |
| Stripping Length | |
| Terminal | |
| Terminal Width | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge (AWG) | |
| Wire Gauge or Range |

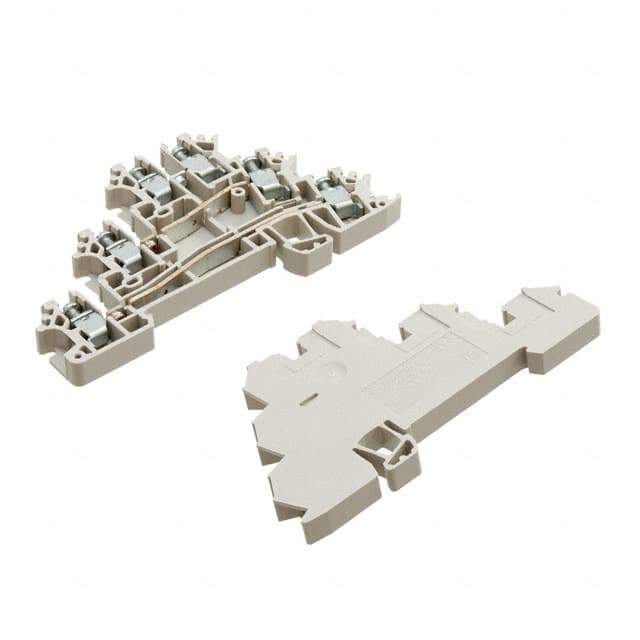

The Weidmuller 1784180000 DLD 2.5 DB is a feed through terminal block from the W-Series, designed for time- and space-saving wiring of initiators and actuators. It features 3 levels with 2 terminal strips per level, providing 6 positions total.
Rated for 10A and 300V, this terminal block accepts solid or flexible conductors from 0.5 to 4 mm² (12-26 AWG). The screw termination ensures secure connections with a recommended tightening torque of 0.4-0.6 Nm. The clamping screw is M2.5 and requires a 0.6 x 3.5 mm blade.
The housing is made of Wemid insulating material, colored dark beige, with a UL 94 V-0 flammability rating. It operates over a temperature range of -50°C to +120°C. Mounting is snap-on onto a TS 35 DIN rail. An end plate is required for installation.
The current rating is 10 A.
The voltage rating is 300 V.
It accepts 12-26 AWG wire.
It has 6 positions across 3 levels.
Snap-on mounting onto a TS 35 DIN rail.
-50°C to +120°C.
Wemid insulating material with UL 94 V-0 flammability rating.
