| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
177 pcs
|
177 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range (Minimum/Maximum) | |
| Pitch | |
| Row Spacing |

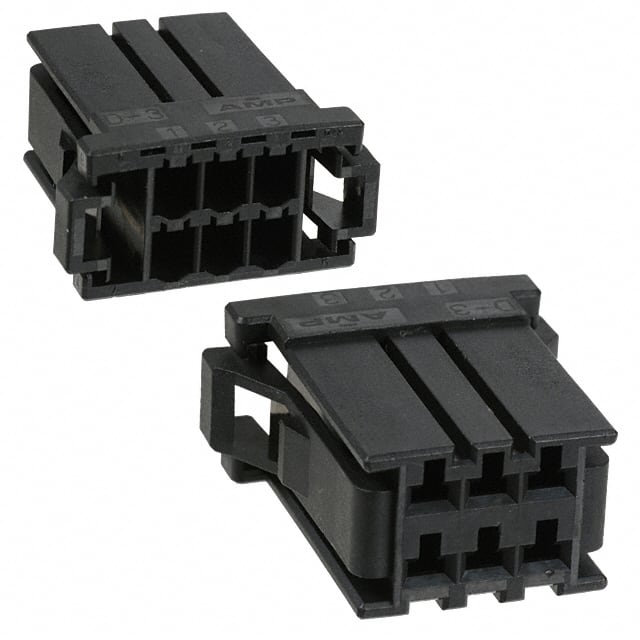

The TE Connectivity 178289-3 is a rectangular connector housing designed for use in wire-to-wire or wire-to-board applications. It is a 6 position receptacle housing with a pitch of 3.81mm (0.150 inches) and a row spacing of 5.08mm (0.200 inches), arranged in 2 rows. The housing accepts female socket contacts and uses crimp termination for secure wire connections.
This connector housing is free hanging (in-line) mountable, making it suitable for cable assembly applications where a panel mount is not required. The black housing is rated for an operating temperature range of -55°C to 105°C, allowing use in a variety of environments.
As a housing only, it does not include contacts or other hardware. Contacts must be ordered separately and crimped onto wires before insertion into the housing. This design provides flexibility in wire gauge selection and allows for field serviceable connections.
The 178289-3 has 6 positions.
The pitch is 3.81mm (0.150 inches).
It uses free hanging (in-line) mounting.
The operating temperature range is -55°C to 105°C.
It supports crimp termination for female socket contacts.
