| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
207 pcs
|
207 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Flammability Class | |
| Header Orientation | |
| Industrial Grade | |
| Insulating Material | |
| Insulation Material Group | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| Rated Current | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage | |
| Solder Pin Length | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| UL | |
| Voltage |

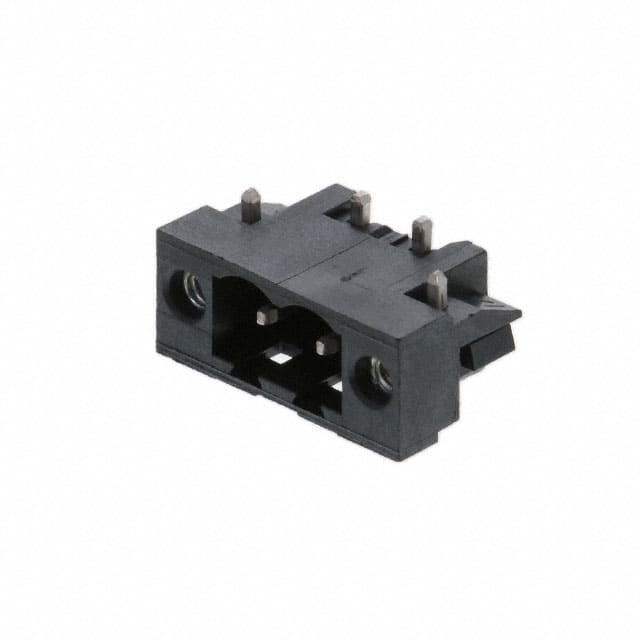

The Weidmüller 1775234001 is a 2-position, 5.08mm pitch shrouded male header designed for PCB mounting. It features a right angle orientation (90°), making it suitable for compact designs where space is limited. The header uses through hole termination with a solder pin length of 1.5mm and is packaged in tape for automated assembly. The insulating material is LCP GF (Liquid Crystal Polymer with glass fiber) rated UL 94 V-0, ensuring high flammability resistance. The contact base material is CuSn (copper-tin) with a tin mating finish. Electrical ratings include 10A rated current and 300V rated voltage, with an operating temperature range of -25°C to 100°C. The header includes a mating and mounting flange for secure connections. It is UL and CSA rated for 300V and 10A. The component is RoHS3 compliant (unverified) and REACH unaffected (unverified).
2 positions.
5.08mm (0.200 inch).
10A (rated current).
300V (rated voltage).
Through hole, reflow solder connection (THR).
-25°C to 100°C.
UL 94 V-0.
