| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
890 pcs
|
890 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CTI | |
| Clamping Range (Flexible) | |
| Clamping Range (Solid) | |
| Clamping Screw | |
| Color | |
| Contact Base Material | |
| Contact Surface | |
| Current | |
| Features | |
| Fitting Hole Diameter | |
| Flammability | |
| Flammability Class | |
| Ingress Protection | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Poles | |
| Pitch | |
| Positions Per Level | |
| Rated Current (CSA) | |
| Rated Current (DIN IEC) | |
| Rated Current (Input) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (CSA/UL) | |
| Rated Voltage (DIN IEC II/2) | |
| Rated Voltage (DIN IEC III/2) | |
| SVHC Present | |
| Screwdriver Blade | |
| Short-Time Withstand Current | |
| Solder Pin Length | |
| Standard Package Quantity | |
| Storage Temperature | |
| Storage Temperature Range | |
| Stripping Length | |
| Tape & Reel | |
| Termination Style | |
| Tightening Torque | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

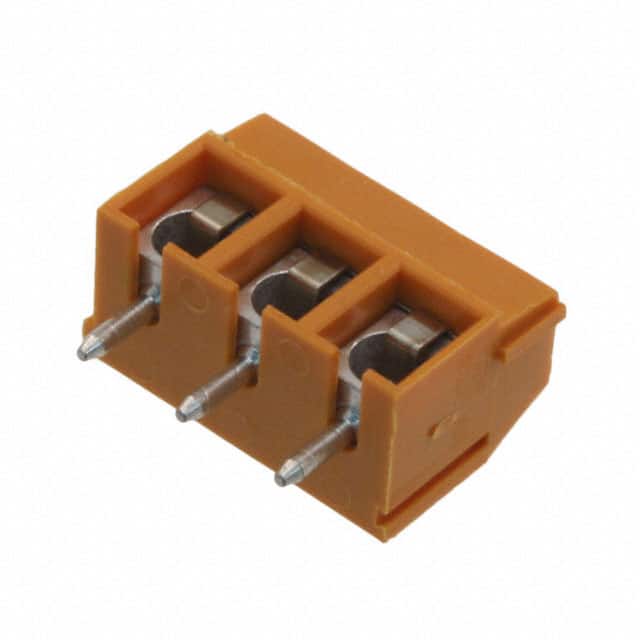

The Weidmüller 1760500000 (PM 5.08/3/90 3.5 OR) is a 3-pole PCB terminal block with a 5.08mm pitch, designed for through-hole soldering. It features a screw leaf spring wire termination (clamping screw M 2.5) and a 90° side entry orientation for horizontal board mounting. The block is rated at 24A (DIN IEC) and 600V (DIN IEC II/2), with a rated impulse withstand voltage of 4 kV. It accepts 14-26 AWG solid or flexible conductors with a stripping length of 6 mm and clamping range of 0.13-2.5 mm². The insulating material is orange Wemid (PA) with UL 94 V-0 flammability rating and CTI >= 600. Contact base is copper alloy with tinned surface. The product is IP20 rated for finger touch protection and is RoHS, REACH, and MSL 1 compliant (unverified). Standard packaging quantity is 500 pieces.
It has 3 poles arranged in a single row.
The pitch is 5.08 mm (0.2 inches).
Rated current is 24 A per DIN IEC (all poles loaded), 15 A per input attribute, and 10 A per CSA use group D. Verify the correct rating for your application.
Voltage rating is 600 V for DIN IEC II/2, 250 V for DIN IEC III/2, and 300 V for CSA/UL.
It is a through-hole mounting type for soldering to a PCB.
It accepts 14-26 AWG solid or flexible conductors, with a clamping range of 0.13-2.5 mm².
The insulating material is rated UL 94 V-0.
