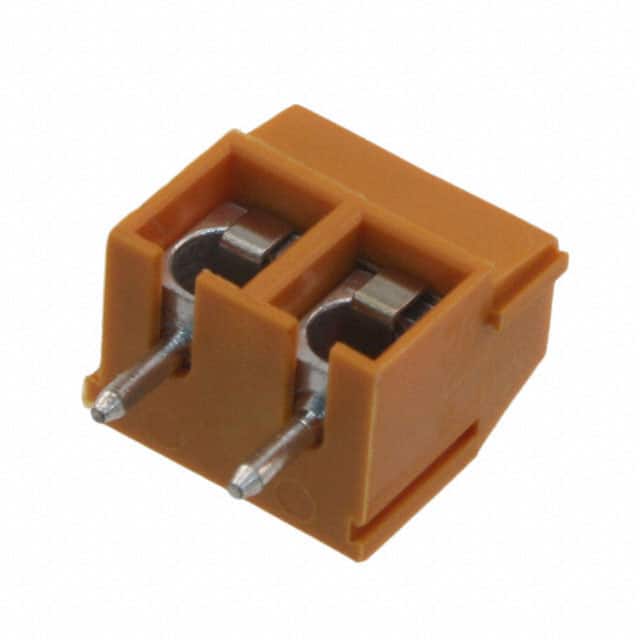

The Weidmüller 1760490000 (PM 5.08/2/90 3.5 OR) is a 2-pole PCB terminal block from the System PM series, featuring a 5.08 mm pitch and a 90° outgoing conductor direction (horizontal with board). It is designed for through-hole soldered connections and uses a screw - leaf spring, wire guard termination system. The block accepts solid and flexible conductors from 0.13 mm² to 2.5 mm² (26 AWG to 14 AWG) with a stripping length of 6 mm and requires a tightening torque of 0.4 Nm to 0.5 Nm on M 2.5 clamping screws.
The housing is molded from orange Wemid (PA) insulating material (similar to RAL 2000) and carries a UL 94 V-0 flammability rating. It has a CTI of ≥ 600 V and provides electric shock protection to IP 20. Electrical ratings include 24 A at up to 40°C (IEC) with a rated impulse withstand voltage of 4 kV. The block supports side interlocking for building multi-pole assemblies up to 24 poles per row.
Storage temperature range is -25°C to +55°C. The solder pin length is 3.5 mm with a fitting hole diameter of 1.3 mm (+0.1 mm tolerance). Supplied in boxes of 500 pieces.
The pitch is 5.08 mm (0.200 inches).
The IEC rated current is 24 A at 40°C. CSA rated current is 10 A (group D).
IEC rated voltage is 600 V (overvoltage class II, pollution severity 2). CSA rated voltage is 300 V (group D).
It is a through-hole (soldered) mounting terminal block.
It accepts solid and flexible conductors from 0.13 mm² to 2.5 mm² (AWG 26 to 14).
The housing is made of orange Wemid (PA) material and has a UL 94 V-0 flammability rating.
