175-P0-200-2R
Mechanical Products

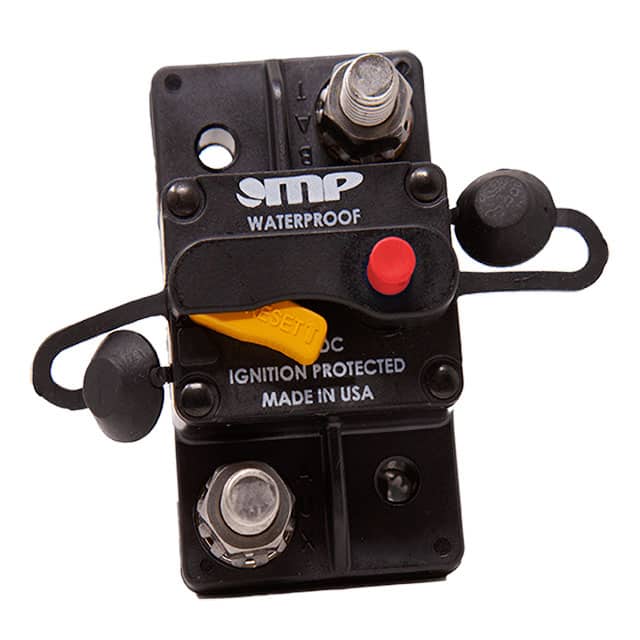

The Mechanical Products 175-P0-200-2R is a thermal circuit breaker with a 200A current rating and 30VDC voltage rating. It features a push-to-reset actuator and chassis mount.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating |
The Mechanical Products Series 17 175-S2-200-2R is a high-amperage thermal circuit breaker rated for 200 Amps and a maximum voltage of 30 VDC. Designed for Type III vehicle protection, it offers trip-free operation and a push-to-reset actuator.
This circuit breaker boasts an IP67 ingress protection rating, making it dustproof and waterproof against immersion up to 1 meter for 30 minutes. It is ignition-protected, compliant with SAE J1171, and meets SAE J1625 and ABYC standards for circuit protection. The operating temperature range is -40°C to 85°C.
Mounting is via chassis mount configuration. The breaker has undergone rigorous testing for corrosion resistance (5% salt spray), humidity (95% RH), shock (100g), and vibration (10g) according to Mil-STD-202 methods. Its interrupt capacity is 2500A at 14VDC (Type III) and 1500A at 30VDC (Type I and Type III).
The 175-S2-200-2R circuit breaker has a current rating of 200 Amps.
The maximum voltage rating for the 175-S2-200-2R is 30 VDC.
The 175-S2-200-2R is a thermal circuit breaker.
This circuit breaker is designed for chassis mounting.
The operating temperature range is -40°C to 85°C.
Yes, the 175-S2-200-2R is ignition protected and compliant to SAE J1171.
The circuit breaker has an IP67 rating for dust and waterproof protection.
