175-S2-200-2R
Mechanical Products
The Mechanical Products 175-S2-200-2R is a 200A thermal circuit breaker designed for vehicle protection. It features a chassis mount and 30VDC voltage rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating |

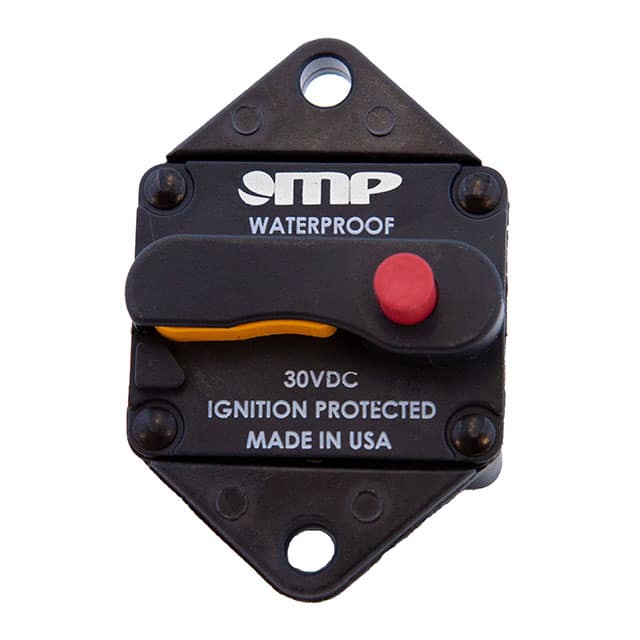

This Mechanical Products Series 17 circuit breaker, part number 175-P0-200-2R, is a thermal type designed for high amperage applications, rated at 200A and 30VDC.
It offers a push-to-reset actuator and a single pole configuration, suitable for chassis mounting. The breaker is compliant with SAE J1625, ABYC, and UL1077 standards, ensuring reliable circuit protection.
Key features include ignition protection compliant to SAE J1171 and IP67 ingress protection for dust and waterproofing. The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions. It also meets Mil-STD-202 for corrosion, humidity, shock, and vibration resistance.
The current rating is 200A.
The maximum DC voltage is 30V.
It is a thermal circuit breaker.
It is designed for chassis mounting.
The operating temperature range is -40°C to 85°C.
Yes, it is ignition protected and compliant to SAE J1171.
It has an IP67 rating for dust and waterproofing.
