Mfr Part #:

175-9266

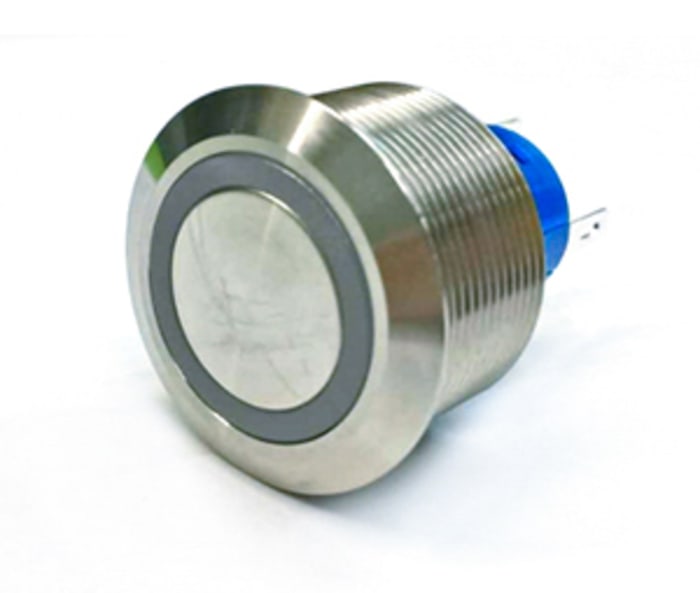

This RS PRO illuminated push button switch features a panel mount design with a 25.2mm cutout and a flat, green LED. It offers SPDT contact configuration and a voltage rating of 250V ac.

✓ Total Stock: 14 pcs

$ Price Range: $1.20

175-9266 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	14 pcs On Request	14 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

175-9266 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	RS COMPONENTS
Contact Material	Copper
Country of Origin	Taiwan, Province Of China
Mounting Type	Panel Mount
Terminal Type	Solder
Voltage Rating	250V ac

View Similar Products (0)

175-9266 Description

Short technical summary and product information.

The RS PRO 175-9266 is an illuminated push button switch designed for panel mounting. It features a 25.2mm cutout diameter and a flat push button style with a green LED indicator.

This switch has a Single Pole Double Throw (SPDT) contact configuration and is rated for 250V ac. The IP67 rating ensures protection against dust and water ingress, making it suitable for various environmental conditions. The contact material is copper, and the terminal type is solder.

With a natural case color and a panel mount design, this switch is intended for straightforward integration into control panels and equipment. The country of origin is Taiwan, Province Of China.

175-9266 Quick Information

Product Type: Illuminated Push Button Switch

Canonical Name: RS PRO Illuminated Push Button Switch

Subcategory: Illuminated Push Button Switch

175-9266 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

175-9266 Estimated Pricing

Qty	Low	High
1+	$1.20	$1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

175-9266 Features

Illuminated push button switch with green LED.
Panel mount design with 25.2mm cutout.
SPDT contact configuration for versatile switching.
Rated for 250V ac with IP67 protection.
Durable copper contacts and solder terminals.

175-9266 Applications

Ideal for control panel interfaces.
Suitable for industrial automation systems.
Used in equipment requiring status indication.
Applications requiring environmental sealing.

175-9266 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the voltage rating of this switch?

250V AC.

What is the mounting type and terminal type?

Panel mount with solder terminals.

What is the IP rating?

IP67.

What is the contact configuration?

SPDT.

What is the panel cutout diameter?

25.2 mm.

What color is the LED?

Green.

What are the contact current ratings?

3A and 5A.
