Mfr Part #:

175-9268

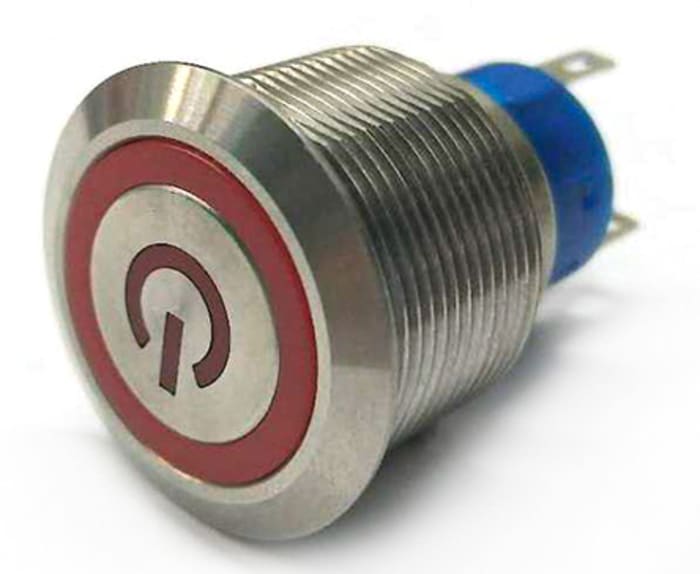

This RS PRO illuminated push button switch offers a panel mount design with a 22.2mm cutout and SPDT contact configuration. It features a red LED indicator and an IP67 rating.

✓ Total Stock: 20 pcs

$ Price Range: $1.20

175-9268 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

175-9268 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	RS COMPONENTS
Contact Material	Copper
Country of Origin	Taiwan, Province Of China
Legend	Power Symbol
Mounting Type	Panel Mount
Terminal Type	Solder
Voltage Rating	250V ac

View Similar Products (0)

175-9268 Description

Short technical summary and product information.

The RS PRO 175-9268 is an illuminated push button switch designed for panel mounting. It features a standard 22.2mm panel cutout diameter and a flat push button style. The contact configuration is Single Pole Double Throw (SPDT), suitable for various switching applications.

This switch is illuminated with a red LED and has a voltage rating of 250V ac. It boasts a high IP67 rating, indicating protection against dust and water ingress, making it suitable for demanding environments. The contact material is copper, and the terminals are designed for solder connections. The legend on the button is a power symbol.

With a contact current rating of 3A and 5A, and a natural case color, this switch is a reliable component for control panels and equipment interfaces. The manufacturer part number is MPB22-D0F11E3-324-JQ, and it originates from Taiwan, Province Of China.

175-9268 Quick Information

Product Type: Illuminated Push Button Switch

Canonical Name: RS PRO Illuminated Push Button Switch, Panel Mount, SPDT, Red LED, 250V ac, IP67

Subcategory: Illuminated Push Button Switch

175-9268 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

175-9268 Estimated Pricing

Qty	Low	High
1+	$1.20	$1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

175-9268 Features

Illuminated push button switch with red LED.
Panel mount design with 22.2mm cutout.
SPDT contact configuration for versatile switching.
Rated for 250V ac and IP67 environmental protection.
Solder terminal type for secure connections.

175-9268 Applications

Ideal for control panel interfaces.
Suitable for industrial equipment controls.
Used in automation systems.
Applicable in harsh environmental conditions.

175-9268 FAQs

7 frequently asked questions generated from this part’s specifications.

What color is the LED indicator?

The LED is red.

What is the IP rating of this switch?

IP67

What is the contact configuration?

SPDT (single pole dual throw)

What is the current rating for the contacts?

Contact is rated for 3 A and 5 A circuits.

What is the required panel cutout size?

22.2 mm diameter cutout.

What type of terminal is used?

Solder terminals.

What legend is on the button face?

Power symbol legend.
