| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Halogen Free | |
| Header Orientation | |
| Industrial Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage |

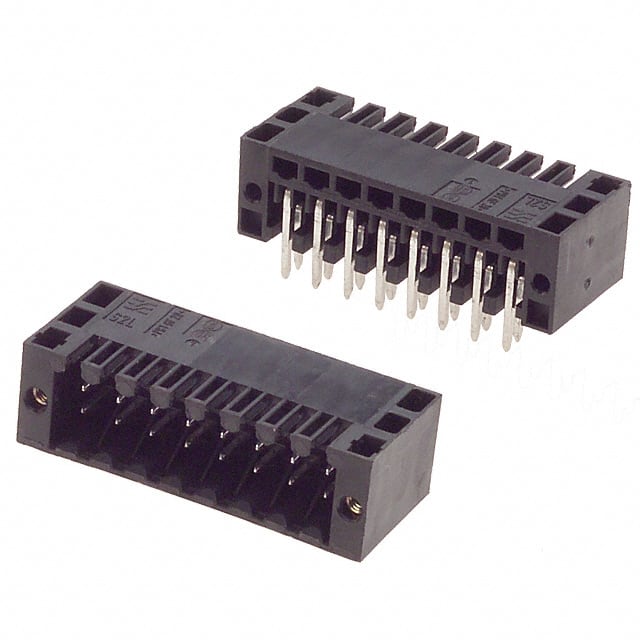

The Weidmüller 1728680000 is a 16-pole right angle PCB plug-in connector header from the S2L 3.5/90F series. It features two rows of 8 pins per level with a 3.50mm pitch. The header is shrouded on all four sides and includes a mating and mounting flange.
The insulating material is PBT (flammability class UL 94 V-0) and the contact base material is copper alloy with a tin contact mating finish. The solder pin length is 3.5mm and the header length (L1) is 24.5mm.
Rated electrical ratings include 10A at 20°C ambient, 8.5A at 40°C ambient, and 150V (UL 1059, use group D). The rated impulse withstand voltage is 2.5kV. This component supports coded mating and provides IP10 electric shock protection.
The pitch is 3.50mm (0.138 inches).
It has 16 positions arranged in 2 rows with 8 positions per level.
Rated current is 10A at 20°C ambient and 8.5A at 40°C ambient. UL 1059 rated current is 7A. CSA rated current is 5A.
The rated voltage is 150V per the existing DB spec. UL 1059 rated voltage is 150V. CSA rated voltage is 50V. Overvoltage class III/pollution severity 3 rated voltage is 80V.
It is a through-hole mounting header with solder termination.
The constant operating temperature range is -25°C to 100°C as per the datasheet.
The existing DB indicates RoHS3 Compliant status but this is unverified and low confidence. Verification against manufacturer documentation is recommended.
