| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Storage Temperature |

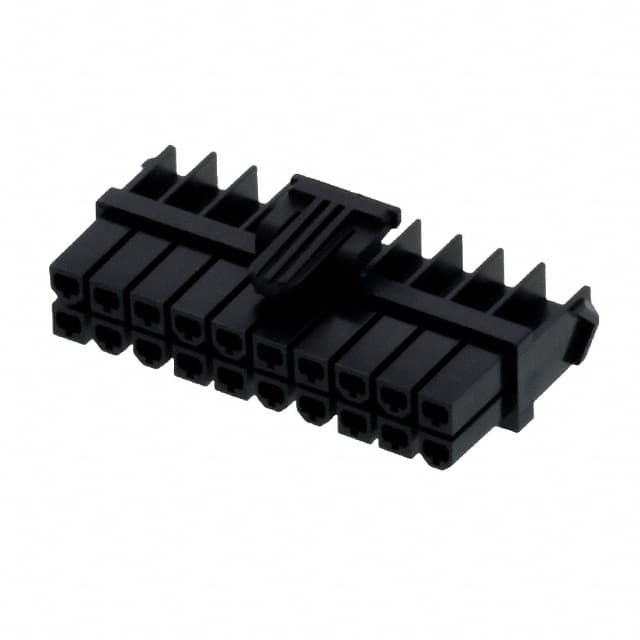

The Molex 1727080120 is a rectangular connector housing designed for use in wire-to-wire or wire-to-board applications. It features a receptacle configuration with 20 female socket contacts arranged in 2 rows at a 4.20mm pitch, with a row spacing of 4.20mm. The housing is black and constructed for free hanging (in-line) mounting, secured by a latch lock fastening system.
This housing accepts crimp termination contacts, allowing for reliable and field-serviceable connections. It is rated for an operating temperature range of -40°C to 105°C, making it suitable for a variety of environments. The part is noted as glow wire compliant, indicating a level of flame resistance.
Typical applications include power and signal distribution in industrial, automotive, and consumer electronics where a compact, high-density interconnect is required. The 4.20mm pitch provides a balance between current capacity and space savings.
The pitch is 4.20mm, with a row spacing of 4.20mm.
It has 20 positions arranged in 2 rows.
It is designed for free hanging (in-line) mounting.
The operating temperature range is -40°C to 105°C.
Yes, it is noted as glow wire compliant.
