| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Centerline (Pitch) | |
| China RoHS | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Halogen Free | |
| Housing Material | |
| Mounting Type | |
| Nominal Voltage Architecture | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Method | |
| Row Spacing | |
| SVHC Present | |
| Sealable | |
| Serviceable | |
| UL Flammability Rating |

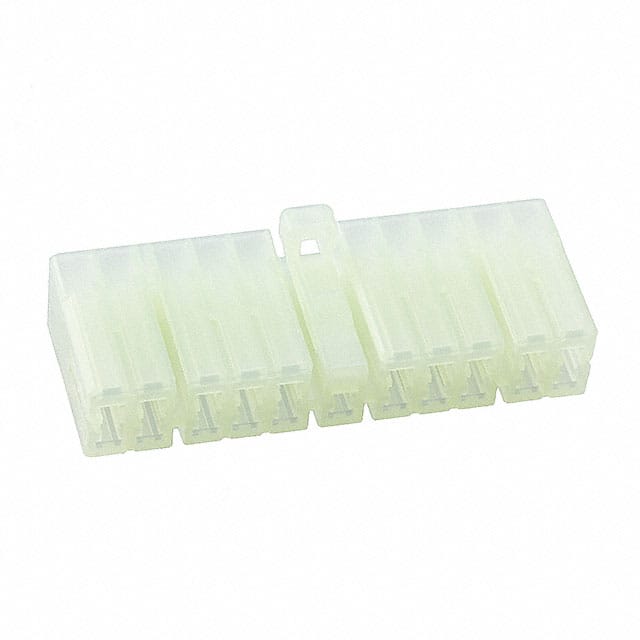

The TE Connectivity 172501-1 is a 21 position rectangular connector housing designed for automotive applications. It is part of the Mark II series and accommodates female socket contacts with crimp termination. The housing is wire-to-wire and features a free hanging (in-line) mounting style with latch lock fastening for secure mating.
This housing has a 5 mm / 7 mm centerline pitch and a row spacing of 6.00 mm. It is rated for 12 V nominal voltage and operates over a temperature range of -30°C to 105°C. The housing is made of Nylon 66 with UL 94V-2 flammability rating and is natural in color. It is serviceable and comes in bag & box packaging.
Typical applications include automotive wire harnesses and in-vehicle connectivity systems where a reliable, non-sealed connection is required. The housing is designed for use with 3 mm contact size terminals and supports up to 21 circuits in a 2-row configuration.
21 positions.
5 mm and 7 mm centerline pitch.
12 V nominal voltage.
Free hanging (in-line) mounting.
-30°C to 105°C.
Nylon 66.
No, it is non-sealable.
