| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Package / Case | |
| Shield Termination | |
| Termination Style |

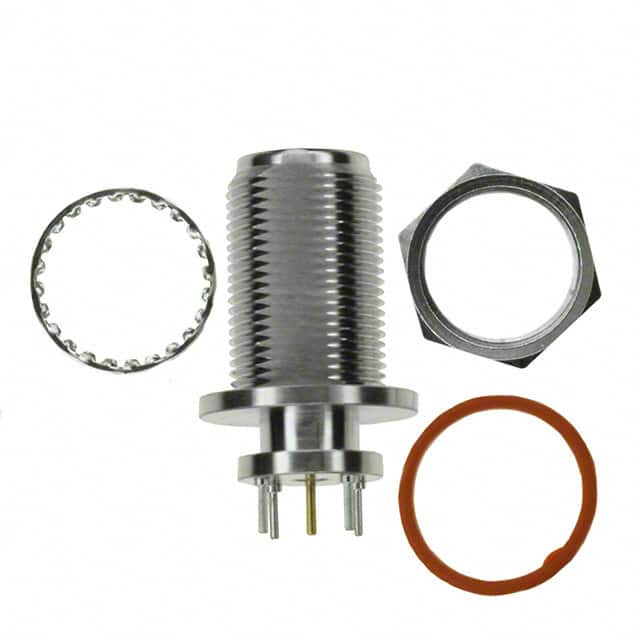

The Amphenol RF 172243 is an N Type coaxial connector receptacle with a female socket contact. It is designed for 50 Ohm impedance and supports frequencies up to 11 GHz, making it suitable for RF applications requiring reliable signal integrity.
The connector features a panel mount, through hole mounting style with a bulkhead front side nut fastening mechanism. The center contact is made of beryllium copper, and both the contact and shield are terminated via solder. The housing is silver in color and the connector is rated as weatherproof, providing environmental protection.
This single-port receptacle uses a threaded coupling mechanism for secure mating. It is commonly used in telecommunications, test equipment, and other RF systems where a robust N Type interface is required.
50 Ohm.
Up to 11 GHz.
N Type receptacle, female socket.
Panel mount, through hole, with bulkhead front side nut.
Solder for both contact and shield.
Yes, it has a weatherproof ingress protection rating.
