| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Solder Pin Length | |
| Standard Package Quantity | |
| Storage Temperature | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

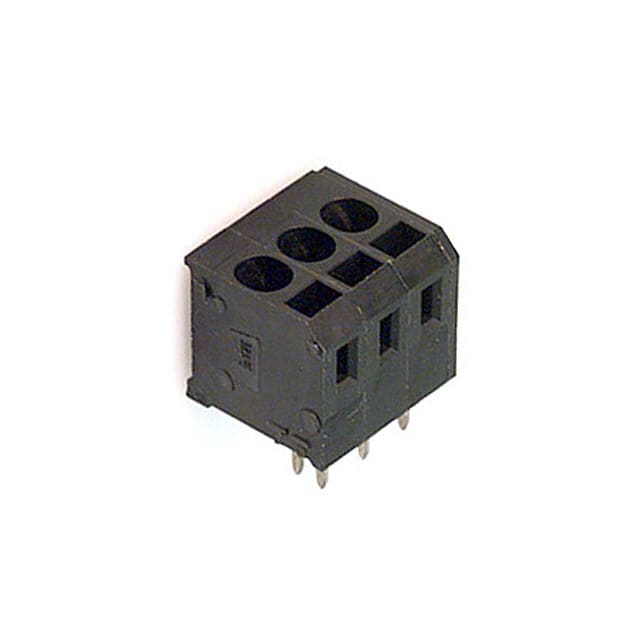

The Weidmüller 1722410000 is a 3-position PCB terminal block from the LMZF 5.08 series, featuring a 5.08mm pitch and screwless spring cage wire termination. It supports wire gauges from 14-26 AWG and is rated for 10A current and 300V voltage. The through hole mounting allows for vertical board mating, with a solder pin length of 4.5mm. The black housing is RoHS compliant and has an MSL of 1. This terminal block is suitable for wire-to-board connections in various industrial and electronic applications. The LMZF 5.08/180 orientation provides top entry for easy wiring.
3 positions.
5.08mm.
10A.
300V.
Through hole.
Screwless spring cage, tension clamp.
14-26 AWG.
