| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Style | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Weight |

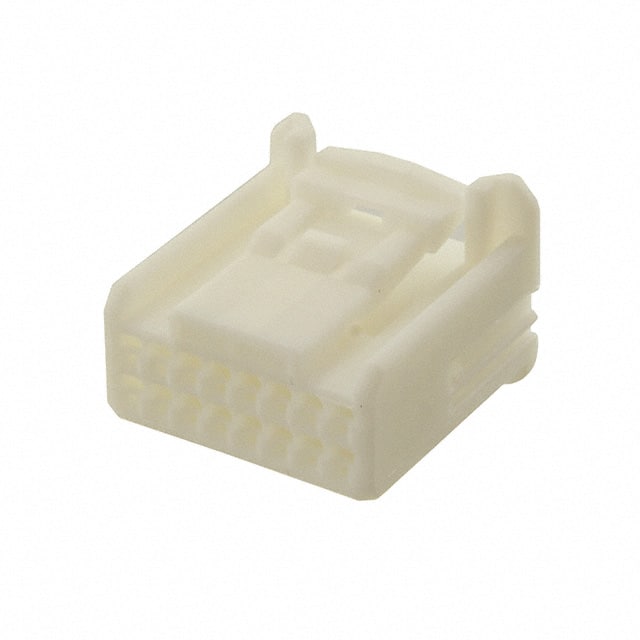

The TE Connectivity 1717109-1 is a 16-position rectangular connector housing (plug) designed for use with 0.64mm female socket terminals. It features a 2.20mm pitch and 3.00mm row spacing, with two rows of contacts. The housing is made of natural PBT (polybutylene terephthalate) plastic and weighs 2.76g. It employs a locking ramp fastening mechanism for secure mating and is free hanging (in-line) mountable. Crimp termination is used for wire connections.
This housing is suitable for applications requiring a compact, reliable interconnection. It can be mated with cap housings such as 1376106 or 1473796. Compatible terminals include 1674311-1, 1674311-2, 1674311-7, 1674311-8, 1674936-5, and 1674936-6. The operating temperature range is -30°C to 105°C.
The 1717109-1 is packaged in a paper box and plastic bag. It is RoHS3 compliant and has an MSL of 1 (unlimited). Note that compliance statuses are unverified from manufacturer sources.
It has 16 positions arranged in 2 rows.
The pitch is 2.20mm (0.087 inches) and the row spacing is 3.00mm (0.118 inches).
It is a free hanging (in-line) mounting type.
The contacts are terminated via crimp.
The operating temperature range is -30°C to 105°C.
The housing is natural (uncolored) PBT.
The weight is 2.76 grams.
