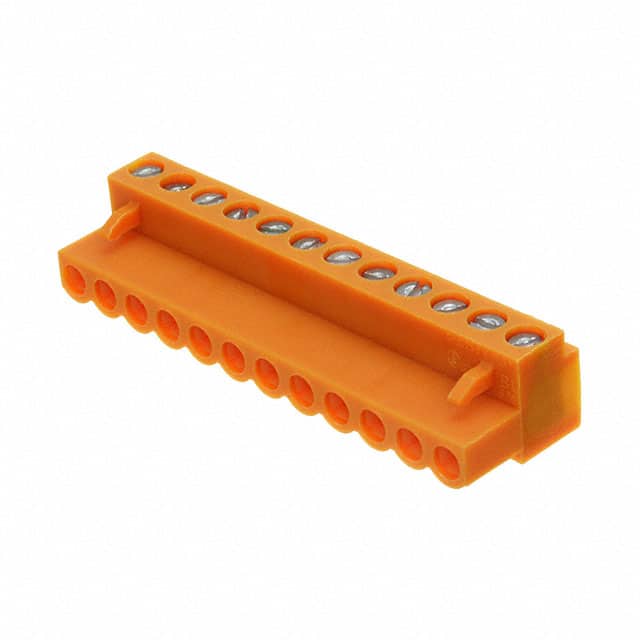

The Weidmüller 1716420000 is a 12-position PCB plug-in connector with female sockets, part of the BL 5.08 series. It features a 5.08mm pitch and a 180° wire entry for straight cable routing. The screw leaf spring termination system ensures secure and reliable connections for solid and flexible conductors ranging from 0.2 to 1.5 mm² (AWG 26-14). The plug is rated for 10A current (UL/CSA) and 300V voltage (UL/CSA), with a rated impulse withstand voltage of 4 kV. The orange insulating housing is made of PA material with UL 94 V-2 flammability rating, and the contacts are tin-plated CuSn. The operating temperature range is -50°C to 100°C. The free hanging (in-line) mounting style, combined with retention latches on the non-wire side, provides secure mating. This product is supplied in a box of 50 pieces.
12 positions.
5.08 mm (0.200 inches).
10 A per UL/CSA; 12-14 A at 20°C ambient.
300 V (UL/CSA) or 400 V (overvoltage class II/2).
Free hanging (in-line).
Solid 0.2-1.5 mm², flexible 0.2-1.5 mm², AWG 26-14.
-50°C to 100°C.
