| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

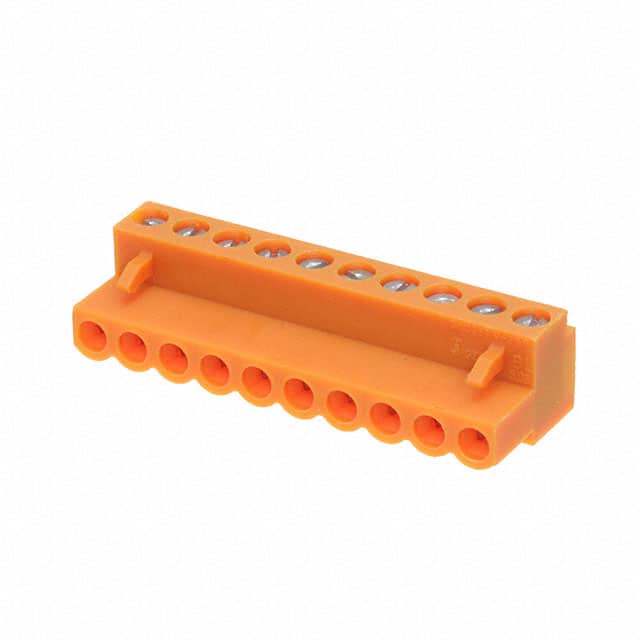

The Weidmüller 1716400000 is a 10-position terminal block plug from the BL 5.08 series, designed for free hanging (in-line) mounting. It features female sockets with a 5.08mm pitch and a leaf spring screw termination system, accepting solid and flexible wires from 0.2 to 1.5 mm² (26-14 AWG). The plug is rated for 10 A current and 300 V voltage, with an operating temperature range of -50°C to 100°C.
Constructed with a PA (polyamide) insulating material in orange (RAL 2000), the connector meets UL 94 V-2 flammability standards and has a CTI of ≥200. The contacts are made of CuSn with tin plating. A stripping length of 6 mm and a tightening torque of 0.4-0.5 Nm ensure reliable wire termination.
This plug is suitable for use in industrial control systems, power supplies, and automation equipment where a compact, reliable pluggable connection is required. The retention latches (non-wire side) provide added security in vibration-prone environments.
The pitch is 5.08mm (0.200 inches).
It has 10 positions.
It is rated for 300 V and 10 A (with derated values of 12-14 A at 20°C and 10-12 A at 40°C).
The mounting type is Free Hanging (In-Line).
It accepts wires from 26 AWG to 14 AWG (0.13 mm² to 2.08 mm²).
It is marked as RoHS3 compliant with low confidence.
The insulating material is PA with a flammability class of UL 94 V-2.
