1716340000

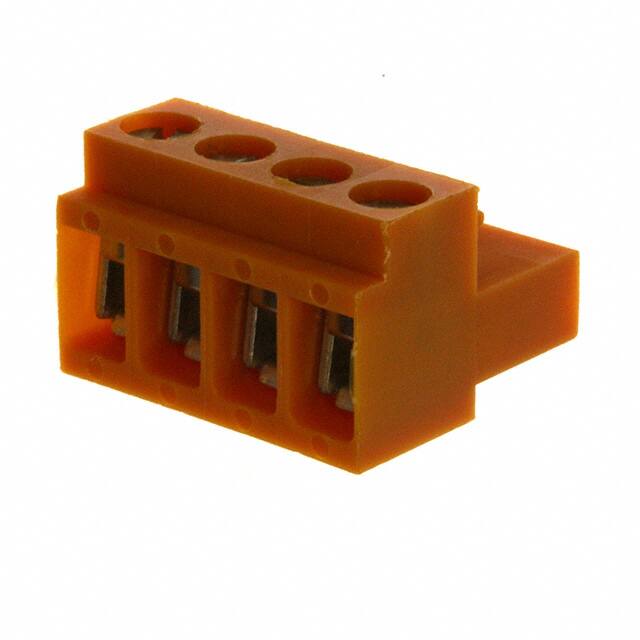

This Weidmüller terminal block plug (order number 1716340000, designation BL 5.08/4 SN OR) is a 4-position, single-level PCB plug-in connector with a 5.08mm pitch. It features a female socket design with screw termination using a leaf spring and wire guard, ensuring reliable conductor clamping. The plug accepts wire sizes from 26 to 14 AWG (0.13-2.08 mm²) with a stripping length of 6 mm and requires a tightening torque of 0.4-0.5 Nm using a 0.6 x 3.5 mm screwdriver.

The connector is rated for 10 A continuous current and offers multiple voltage ratings: 300 V under UL/CSA, 400 V under IEC Overvoltage Class II/2, 320 V under Class III/2, and 250 V under Class III/3. It can withstand impulse voltages up to 4 kV. The operating temperature range is -50°C to 100°C.

Constructed with a polyamide (PA) insulator in orange (RAL 2000 similar) with a flammability rating of UL 94 V-2 and a CTI of ≥200, the contacts are made of copper-tin alloy with a tin-plated mating finish. The plug features retention latches on the non-wire side and offers 180° wire entry for straightforward in-line wiring. It is designed for free hanging (in-line) mounting.

Supplied in a standard package of 100 pieces per box, this connector is suitable for a wide range of industrial and PCB connection applications where a compact, reliable pluggable interface is needed.
